Product Details:
Payment & Shipping Terms:
|
| 1st: | Optical Fiber | 2nd: | Tube Filling Compound |
|---|---|---|---|
| 3rd: | Loose Tube | Strength Member: | E-Glass |
| Outer Jacket: | PE Or LSZH Jacket | Color: | Black |
| Package: | 1000M, 2000M, 4000M, Wooden Drum |
Quick Detail:
Description:
Choice of fibre types
Individually coloured optical fibres
Robust loose tube construction for external water ingress protection
E-glass strength members for rodent resistance
ITU-T G.652D, ITU-T G.657A1 & ITU-T G.657A2 all dielectric Fibre To The Home (FTTH)
indoor/outdoor drop cable containing 1, 2 or 4, 250 μm optical fibres in a single 1.7mm gel filled loose tube, waterblocking E-glass non metallic strength members and white Low Smoke Zero Halogen (LSZH) or black Polyethylene (PE) jacket printed in black or white by the inkjet technique.
Applications:
Internal/External FTTH applications horizontal, riser and duct;
Clipping to surfaces including skirting boards;
|

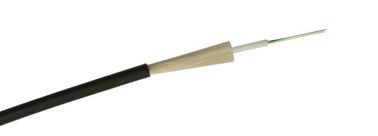

4 Fiber All Dielectric 250 μm FTTH Losse Tube Drop Cable for Networking |
||
| Applications: | ||
|
Internal/External FTTH applications horizontal, riser and duct; |
||
| Clipping to surfaces including skirting boards; | ||
| Specifications: | ||
| Parameter | Unit | Value |
| Crush | N/100mm | 800 |
| Strength Member | E-Glass | |
| Storage Temperature | ℃ | -20 to 60 |
| Installation Temperature | ℃ | -5 to 60 |
| Operating Temperature | ℃ | -20 to 60 |
| Nominal Weight | kg/km | 22 (LSZH) / 16 (PE) |
| Primary Buffer Diameter | μm | 250 |
| Fiber Count | n | 1, 2 or 4 |
| Nominal Outer Diameter | mm | 4.20 ± 0.20 |
| Maximum Tensile Load | n | 500 |
| Minumum Bend Radius | mm | 15 |
| Order Informations: | ||
| Marking | ZION KT3010 FTTH DROP CABLE XXX M (or Per customer's request) | |
| Package | 1000M, 2000M, 4000M, Wooden Drum (or Per customer's request) | |
| Delivery time | Normally 20 days after received the deposit. | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A,Incoming material inspected by QC.
B,Manufacturing Process Control
A: Manufacturing procedure
B: Workers trained daily/weekly/monthly
C: Work instructions manual at each work station
D:5S system implemented
E: Machine maintenance procedure
C, Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and ZION.
3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
