|Fiber:||Tight Buffer Fiber||Strength Member:||Aramid Yarn|
|Jacket:||PVC Or LSZH||Mode:||Singlemode Or Multimode|
|Package:||1000M, 2000M, Wooden Spool|
heat resistance cable,
fiber optic ethernet cable

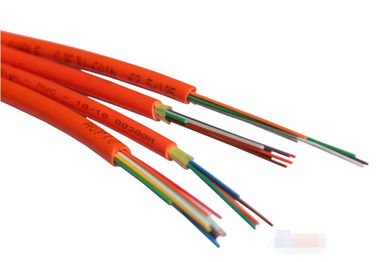

Fiber Optic GJFJV Multi Purpose Distribution Cable Singlemode Multimode Indoor
In the structure of cable, the multiple Kevlar yarn is used as reinforcement on the outdise of the tight jacketed single mode or multimode optical fiber and the fire retardant flat sheath is extruded to form an optical cable. The performance of the product is better than the mational standard as the premium optical fiber is selected with rational number of Kevlar yarn and design tension and made by special equipment with precision mold.
Induct outdoor wiring into indoor, for patch cords and connectors, for Fanouts.
|Fiber Optic GJFJV Multi Purpose Distribution Cable Singlemode Multimode Indoor|
|Induct outdoor wiring into indoor, for patch cords and connectors, for Fanouts.|

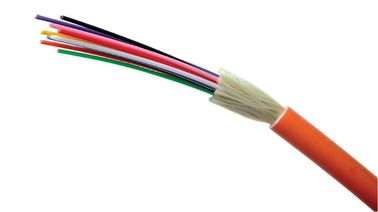

In the structure of cable, the multiple Kevlar yarn is used as reinforcement on the outdise of the tight
jacketed single mode or multimode optical fiber and the fire retardant flat sheath is extruded to form
an optical cable.Th e performance of the product is better than the mational standard as the premium
optical fiber is selected with rational number of Kevlar yarn and design tension and made by special
equipment with precision mold.
|(1)A perfect screw of good linearity and small extrusion rate is chosen for
processing tight jacketed optical fiber and good stripping;
|(2)Both tight jacket of optical fiber and external sheath are perfect fire retardant sheathing material;|
|(3)Before tight jacketing of optical fiber, the optical fiber has been strictly selected so that both geometric
dimension and transmission performance of optical cable could satisfy customer demand.
|Cable Type||Cable Diameter
|GJFJV 2 Core||4.00||12.4||200/660||300/1000||10D/20D|
|GJFJV 4 Core||4.80||16.2||200/660||300/1000||10D/20D|
|GJFJV 6 Core||5.10||20.0||200/660||300/1000||10D/20D|
|GJFJV 8 Core||5.60||26.0||200/660||300/1000||10D/20D|
|GJFJV 10 Core||5.80||28.0||200/660||300/1000||10D/20D|
|GJFJV 12 Core||6.20||31.5||200/660||300/1000||10D/20D|
|GJFJV 24 Core||
|GJFJV 2 Core||3.20||10.0||200/660||300/1000||10D/20D|
|GJFJV 4 Core||4.80||18.0||200/660||300/1000||10D/20D|
|GJFJV 6 Core||5.10||22.5||200/660||300/1000||10D/20D|
|GJFJV 8 Core||5.60||28.0||200/660||300/1000||10D/20D|
|GJFJV 10 Core||5.80||32.5||200/660||300/1000||10D/20D|
|GJFJV 12 Core||6.20||38.0||200/660||300/1000||10D/20D|
|GJFJV 24 Core||8.00||58.5||200/660||300/1000||10D/20D|
|Optical fiber Characteristics:|
|@850nm||≤3.5 dB/km||≤3.5 dB/km|
|@1300nm||≤1.5 dB/km||≤1.5 dB/km|
|Bandwidth (Class A)||@850nm||≥200 MHz·km||≥160 MHz·km|
|@1300nm||≥400 MHz·km||≥300 MHz·km|
|Storage/Operating Temperature : -40℃ to + 70℃|
|Marking||ZION KT3014 GJFJV Distribution Cable XXX M/FT|
|Package||1000M, 2000M, Wooden Spool (or Per customer's request)|
|Delivery time||Normally 15 days after received the deposit.|
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A,Incoming material inspected by QC.
B,Manufacturing Process Control
A: Manufacturing procedure
B: Workers trained daily/weekly/monthly
C: Work instructions manual at each work station
D:5S system implemented
E: Machine maintenance procedure
C, Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and ZION.
3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
