RG59/U CCTV Coaxial Cable 20 AWG BC 95% CCA Braid + 2 x 0.75mm2 CCA Power CMR

China RG59/U CCTV Coaxial Cable 20 AWG BC 95% CCA Braid + 2 x 0.75mm2 CCA Power CMR supplier
RG59/U CCTV Coaxial Cable 20 AWG BC 95% CCA Braid + 2 x 0.75mm2 CCA Power CMR supplier RG59/U CCTV Coaxial Cable 20 AWG BC 95% CCA Braid + 2 x 0.75mm2 CCA Power CMR supplier

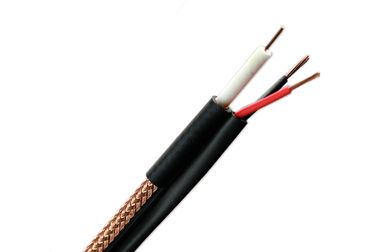

Large Image :  RG59/U CCTV Coaxial Cable 20 AWG BC 95% CCA Braid + 2 x 0.75mm2 CCA Power CMR

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: ISO, UL, CE, RoHS
Model Number: RG59/U CCTV Coaxial Cable

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detailed Product Description
Conductor: Bare Copper Insulation: CMR Rated PVC In Red & Black
Shield: CCA Braiding Jacket: CMR Rated PVC
Power Wire: Copper Clad Aluminum Color: Balck, White
Package: 500FT, 1000FT, Plastic / Wooden Spool, Carton
High Light:

digital coaxial cable

,

outdoor coaxial cable





RG59/U CCTV Coaxial Cable 20 AWG BC 95% CCA Braid + 2 x 0.75mm2 CCA Power





Quick Detail:



  • RG59/U CCTV Coaxial Cable
  • 20 AWG BC Conductor
  • Foamed PE Insulation
  • 95% CCA Braiding
  • PVC- UL Listed, CMR Rated
  • 16×0.254mm CCA Power
  • 75 Ohms CCTV Cable
  • RoHS Compliant
  • 500FT, 1000FT, Plastic / Wooden Spool, Carton
  • MOQ: 30 KM



Description:



RG59/U CCTV Coaxial Cable 20AWG BC 95% CCA Braid + 2 x 0.75mm2 CCA Power UL CMR

RG59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by ZION) is perfect

for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.

ZION using best raw material and best worker to produce RG59/U to meet high performance in

practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on

pallet to protect the spool and easier carry.Because of good managing methods,

ZION’S price of RG59/U is not high although our quality is really high.





Applications:



Suitable for Signal Transmission

■ CCTV

■ Local Area Network

■ Digital Video

■ Monitor / VDT Display

■ Security Camera





Specifications:



RG59/U CCTV Coaxial Cable 20AWG BC 95% CCA Braid + 2 x 0.75mm2 CCA Power UL CMR
Construction Parameters:
  Inner Conductor 0.032"/0.81mm/20AWG Bare Copper
  Dielectric 0.144"/3.66±0.05mm       Foamed Polyethylene
  First Shield Nom. 0.161"/4.10mm       Braiding
  Strands 0.005"/0.12mm Copper Clad Aluminum
  % Coverage 95 nom
  Jacket 0.236"/6.00±0.1mm                   CMR Rated PVC (NEC RISER)
  Power Wire Conductor 2-18 AWG 16×0.001"/16×0.254mm Copper Clad Aluminum
  Power wire Diameter of insulation 0.075"/1.90mm  CMR Rated PVC (NEC RISER)
  Power Wire Color Code Red,Black
  Jacket 0.199"/5.05±0.1mm CMR Rated PVC (NEC RISER)
  * 1 Pair of wire twisted
  Application For Use in Intermediate CCTV Run Lengths
  Limited Length Typical run length up to 750 feet

Electrical Characteristics:
  Capacitance 52±1 pF/m 17±0.3 pF/ft
  Impedance 75±3 Ω
  Resistance 35.73 Ohms/KM 11.72 Ohms/KM
  Return loss between 5 and 1000MHz > 22dB
  Velocity of Propagation  0.85
  Shielding Effectiveness(>dB) 70
  Max Operating Voltage(KVMS) 3
  Operating Temp Range  (PVC) -20 ℃ to 75℃
  RoHS YES

Attenuation(20℃):
Frequency
(MHZ)
Max Attenuation
(dB/100ft)
Max Attenuation
(dB/100m)
1 0.45  1.48
10 0.90  2.95
50 1.90  6.23
100 3.20  10.49
200 4.00  13.11
400 4.90  16.07
700 8.60  28.20
900 9.80  32.13
1000 10.70  35.08

Order Informations:
  Marking

ZION RG59/U 95% CCA+2 x 0.75mm2 CCA CLASS 5 ETL XX

RoHS CMR CL2 75C XX FT CAMERA/ZONE  A B C D E F 1 2 3 4 5 6 7 8 9

  Inner Package 500FT, 1000FT, Plastic / Wooden Spool, Carton
  Delivery time Normally 25 days after received the deposit.
  More informations  please contact with us.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and KINGTONE.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery



RG59/U CCTV Coaxial Cable 20 AWG BC 95% CCA Braid + 2 x 0.75mm2 CCA Power CMR
