Payment & Shipping Terms:
|Conductor:||Copper Clad Steel||Dielectric:||Foamed PE|
|Shield 1:||Bonded AL-Foil||Shield 2:||Aluminum Braiding|
|Jacket:||CM Rated PVC||Color:||Black Or White|
|Package:||500FT, 1000FT, Plastic / Wooden Spool, Carton|
digital coaxial cable,
hd coaxial cable

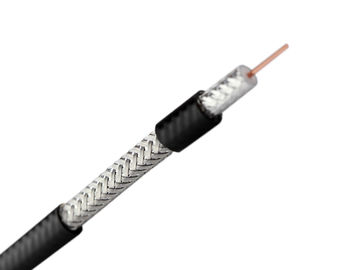

CATV RG6 18 AWG CCS Dual Shielded Coaxial Cable Swept to 3.0 GHz for Antennas
KT0606 RG6 CATV COAXIAL CABLE 18 AWG CCS 60% AL Braiding CM Rated PVC
is a specific type of CATV Coaxial Cable , RG6 (Produced by ZION) is perfect for
digital Cable and Satalite, Attenas, and communication systems. RG6 has a characteristic
impedance of 75 ohms. ZION using best raw material and best worker to produce
RG6 to meet high performance in practical application. RG6 is packed in 500FT, 1000FT
Wooden Spool, and will be layed on pallet to protect the spool and easier carry.
Because of good managing methods, ZION’S price of RG6 is not high although
our quality is really high.
Suitable for RF signal transmission
■ Local Area Network
■ Digital Video
|KT0606 RG6 CATV COAXIAL CABLE 18AWG CCS B.AL-Foil 60% AL Braiding CM Rated PVC|
|Inner Conductor||0.040"/1.02mm/18AWG||Copper Clad Steel|
|Dielectric||0.180"/4.57mm Foamed PE||Gas Expanded Polyethylene|
|Shield 1||0.187"/4.75mm||Bonded Aluminum Polyproylene|
|Shield 2||60% coverage||Aluminum braid wire|
|Application||For Use in Longer CATV||Run Lengths|
|Inner Conductor Resistance||The Max. at 20℃ shall be||< 87 Ω/km;<26.6Ω/1000ft|
|Capacitance||52 ±3 pF/m||15.9 ±0.9 pF/ft|
|Impedance||75 ± 3 Ω|
|Return loss||between 5 and 1000MHz:||> 22dB|
|Velocity of Propagation||0.85|
|Sparker Test (VAC)||4|
|Mechanical and Envrionmental Properties:|
|Cable bend radius||10 times the cable diameter|
|Operating Temp Range||-20 ℃ to 60℃|
|Cable diamensions||0.268"±0.006"/6.81±0.15mm PVC|
ZION KT0606 RG6 Bonded 60% AL PVC CM
CATV COAXIAL CABLE ××× M/FT
|Package||500FT, 1000FT, Plastic / Wooden Spool, Carton, Pallet|
|Delivery time||Normally 25 days after received the deposit.|
|More informations||please contact with us.|
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
