|Conductor:||Copper Clad Steel||Dielectric:||Foamed PE|
|Shield:||Aluminum Braiding||Jacket:||High Quality PVC|
|Connector:||Compression Connector||Color:||Black Or White|
|Package:||20M, 25M, 30M, Roll, Carton|
outdoor coaxial cable,
hd coaxial cable

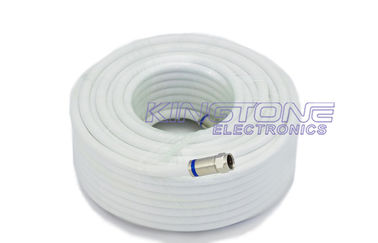

RG6 CATV Coaxial Cable in 20M with Compression Connector for Digital Camera
RG6 CATV Coaxial Cable with Compression Connector in 20M, 30M Length
is a specific type of CATV coaxial cable , RG6 (Produced by ZION is perfect for
digital Cable and Satalite, Attenas, and communication systems. RG6 has a characteristic
impedance of 75 ohms. ZION using best raw material and best worker to produce
RG6 to meet high performance in practical application. RG6 is packed in 15m,20m,25m,30m,
and will be layed on pallet to protect the spool and easier carry.
Because of good managing methods, ZION’S price of RG6 is not high although
our quality is really high.
Suitable for RF signal transmission
■ Local Area Network
■ Digital Video
|Inner Conductor||0.040"/1.02mm/18AWG Copper-Clad Steel|
|Dielectric||0.180"/4.57mm Foamed PE(Gas Expanded Polyethylene)|
|Shield 1||0.187"/4.75mm Bonded Aluminum-Polyproylene|
|Shield 2||Aluminum braid wire 90% coverage|
|Jacket||0.272"±0.006"/6.91±0.15mm PVC White|

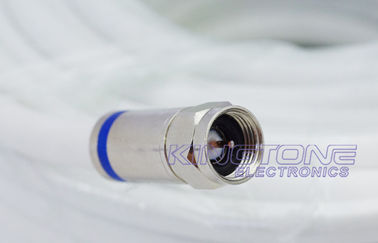

|Connector||RG6 Compression Connector|
|Application||CATV strength signal transfer|
|Inner Conductor Resistance||The Max. at 20℃ shall be < 87 Ω/km|
|Capacitance||52 ±3 pF/m|
|Impedance||75 ± 3 Ω|
|Return loss||between 5 and 1000MHz: > 22dB|
|Velocity of Propagation||0.85|
|Sparker Test (VAC)||4|
|Frequency (MHZ)||Max Attenuation(dB/100ft)||Max Attenuation (dB/100m)|
|Mechanical and Envrionmental Properties|
|Cable bend radius||10 times the cable diameter|
|Operating Temp Range||-20 ℃ to 60℃|
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
