RG59 Micro CCTV Coaxial Cable 95% CCA Braid + 2×0.75mm2 CCA Power Common

China RG59 Micro CCTV Coaxial Cable 95% CCA Braid + 2×0.75mm2 CCA Power Common supplier
RG59 Micro CCTV Coaxial Cable 95% CCA Braid + 2×0.75mm2 CCA Power Common supplier RG59 Micro CCTV Coaxial Cable 95% CCA Braid + 2×0.75mm2 CCA Power Common supplier

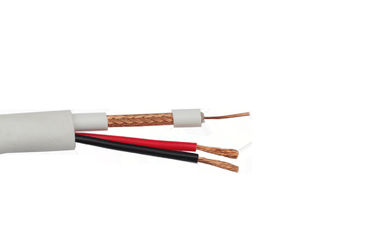

Large Image :  RG59 Micro CCTV Coaxial Cable 95% CCA Braid + 2×0.75mm2 CCA Power Common

Product Details:

Place of Origin: China
Brand Name: ZION OR OEM
Certification: ISO, UL, CE, RoHS
Model Number: RG59 Micro CCTV Coaxial Cable

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detailed Product Description
Conductor: Stranded Bare Copper Insulation: High Quality PVC In Red & Black
Shield: CCA Braiding Jacket: High Quality PVC
Power Wire: Copper Clad Aluminum Color: Black, White
Package: 500FT, 1000FT, Plastic / Wooden Spool, Carton







RG59 Micro CCTV Coaxial Cable 95% CCA Braid + 2 × 0.75mm2 CCA Power Common





Quick Detail:



  • RG59 Micro CCTV Coaxial Cable
  • 7 × 0.18mm Bare Copper Conductor
  • Solid PE Insulation
  • 95% CCA Braiding
  • 2 × 0.75mm2 CCA Power
  • 16 × 0.25mm CCA Power
  • 75 Ohms CCTV Coaxial Cable
  • High Quality PVC, RoHS Compliant
  • 500FT, 1000FT, Plastic / Wooden Spool, Carton
  • MOQ: 30 KM



Description:



RG59 Micro CCTV Coaxial Cable 95% CCA Braid + 2x0.75mm2 CCA Power Common

RG59 Micro is a specific type of CCTV coaxial cable , RG59 Micro (Produced by ZION) is perfect

for any type of surveillance camera installation. RG59 Micro has a characteristic impedance of 75 ohms.

ZION using best raw material and best worker to produce RG59 Micro to meet high performance in

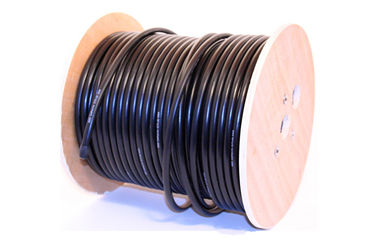

practical application. RG59 Micro is packed in 500FT/1000FT Plastic/Wooden Spool, and will be layed on pallet to protect the spool and easier carry.Because of good managing methods,

ZION’S price of RG59 Micro is not high although our quality is really high.





Applications:



Suitable for Signal Transmission

■ CCTV

■ Local Area Network

■ Digital video

■ Monitor/VDT display

■ Security Camera





Specifications:





RG59 Micro CCTV Coaxial Cable 95% CCA Braid + 2x0.75mm2 CCA Power Common
Construction Parameters:
  Inner Conductor 7×0.18mm   Stranded Bare Copper
  Dielectric 2.2±0.05mm            Solid PE
  Shield Nom. 2.7mm
  Strand 0.12mm/34AWG Copper Clad Aluminum
  % Coverage 95 nom.
    High Quality PVC
  Power Wire Conductor 16×0.25mm Copper Clad Aluminum
  Power wire Diameter of insulation 1.90mm High Quality PVC
  Power Wire Color Code Red,Black
  Jacket 5.05±0.1mm High Quality PVC
  * 1 Pair of wire twisted
  Application For Use in High Density Cameras
  Limited Length Typical run length up to 375 feet

Electrical Characteristics:
  Capacitance 52±2 pF/m
  Impedance 75±3 Ω
  Inner Conductor Resistance 20.74 Ohms/KM at 20℃
  Return loss between 5 and 1000MHz > 17dB
  Velocity of Propagation  0.66
  Sparker Test (VAC) 3
  Operating Temp Range  (PVC) -20 ℃ to 70℃
  RoHS YES

Attenuation(20℃):
Frequency
(MHZ)
  Max Attenuation
(dB/100m)
5   4.30
50   15.23
100   21.77
200   31.33
550   54.12
750   60.43
865   67.11
1000   77.69

Order Informations:
  Marking

ZION RG59 MICRO 95% CCA + 2x0.75MM2 CCA

CE RoHS XXX M  MMDDYYYY

  Package 500FT, 1000FT, Plastic / Wooden Spool, Carton
  Delivery time Normally 25 days after received the deposit.
  More informations  Please contact with us.







Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and ZION.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery



RG59 Micro CCTV Coaxial Cable 95% CCA Braid + 2×0.75mm2 CCA Power Common
