FPL 16 AWG Fire Alarm Cable Solid Bare Copper Conductor with Non-Plenum PVC Jacket

China FPL 16 AWG Fire Alarm Cable Solid Bare Copper Conductor with Non-Plenum PVC Jacket supplier
FPL 16 AWG Fire Alarm Cable Solid Bare Copper Conductor with Non-Plenum PVC Jacket supplier FPL 16 AWG Fire Alarm Cable Solid Bare Copper Conductor with Non-Plenum PVC Jacket supplier

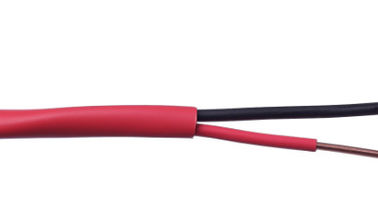

Large Image :  FPL 16 AWG Fire Alarm Cable Solid Bare Copper Conductor with Non-Plenum PVC Jacket

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: FPL 16 AWG Shielded & Unshielded

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detailed Product Description
Conductor: Solid Bare Copper Insulation: FPL-PVC
Jacket: FPL-PVC Color: Red
Package: 500FT, 1000FT, Plastic / Wooden Spool, Carton





FPL 16 AWG Fire Alarm Cable Solid Copper Conductor with Non-Plenum PVC Jacket





Quick Details



  • Power Limited Fire Alarm Cable
  • 16 AWG, FPL-CL2
  • Solid Bare Copper Conductor
  • Unshielded Types: 2C / 4C
  • Shielded Types: 2C / 4C
  • Non-Plenum PVC Jacket
  • 500FT, 1000FT, Plastic / Wooden Spool, Carton





Description



ZION is the leading manufacturer of fire alarm system cables for the fire protection industry. Our innovative product line includes all power-limited cables for use in the NEC Article 760.

NATIONAL ELECTRIC CODE (NEC) ARTICLE 760: NEC Article 760 covers the installation of wiring and equipment of fire alarm systems,including all circutis controlled  and powered by the fire alarm system.
These systems are defined in the NEC as " The portion of wiring system between the load side of the overcurrent devices or the power-limited supply and the connected equipment of all circuits powered
and controlled by the fire alarm system."

Type FPL-CL2 Power Limited Fire Alarm Cable is listed by the NEC as being suitable for general purpose
fire alarm use.This listing excludes installation in riser, ducts, plenums and other spaceused for
environmental air unless the cable is installed in conduit.All FPL cables are listed as being resistant to
the spread of fire and must pass both UL test 1424 and the vertical flame testUL 1581.



KT1418 Fire Alarm Cable 16 AWG FPL-CL2 PVC Insulation Non-Plenum PVC Jacket
Application
Indoor for:
Audio Circuits
Control Circuits
Initiating Circuits
Notification Circuits

Properties
Temperature Rating:    '-20 to 75℃
Operating Voltage:       300 Volts max.
Flame Rating:              UL 1685 Vertical Tray
Insulation & Jacket:      PVC

Unshielded types
Conductors NOM.THICKNESS(MM) Nominal0.D.  Capacitance Impedance DC Resistance
Number Solid Insulation Jacket Inch pf/ft Ohms Ohms/M'
2 16 AWG 0.006" 0.015" 0.158" 20 81 4.15
4 16 AWG 0.006" 0.015" 0.180" 20 81 4.15
Shielded types
Conductors NOM.THICKNESS(MM) Nominal0.D.  Capacitance Impedance DC Resistance
Number Solid Insulation Jacket Inch pf/ft Ohms Ohms/M'
2 16 AWG 0.006" 0.015" 0.160" 46 34 4.1
4 16 AWG 0.006" 0.015" 0.186" 46 34 4.1

  Drain Wire     20 AWG Solid Tinned-Copper
  Shield     0.001" thick Aluminum/Mylar

Color
Number Description
2 Blk,Red
4 Blk,Red,Ylw,Grn

Order Informations:
Print

ZION KT1418 ×C16 E×××××××(UL) FPL

OR CL2 SUN RES(ROHS) ××××FT
DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9

Packing 500FT, 1000FT, Plastic / Wooden Spool, Carton
