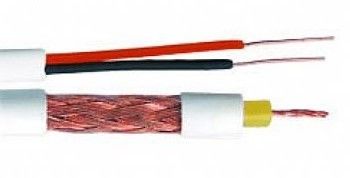

Flexível Para CFTV Coaxial Cable 80% CCA Braiding for Security Camera in Brazil

China Flexível Para CFTV Coaxial Cable 80% CCA Braiding for Security Camera in Brazil supplier
Flexível Para CFTV Coaxial Cable 80% CCA Braiding for Security Camera in Brazil supplier Flexível Para CFTV Coaxial Cable 80% CCA Braiding for Security Camera in Brazil supplier

Large Image :  Flexível Para CFTV Coaxial Cable 80% CCA Braiding for Security Camera in Brazil

Product Details:

Place of Origin: China
Brand Name: ZION OR OEM
Certification: ISO, UL, CE, RoHS
Model Number: Flexível Para CFTV Coaxial Cable

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 100M / Box / Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detailed Product Description
Conductor: Bare Copper Insulation: High Quality PVC In Red / Black
Shield: CCA Braiding Jacket: High Quality PVC
Power Wire: Copper Clad Aluminum Color: White
Package: 100M / Box / Carton




Flexível Para CFTV Coaxial Cable 80% CCA Braiding for Security Camera in Brazil





Quick Detail:



  • Flexível Para CFTV Coaxial Cable
  • 8 × 0.14mm BC Conductor
  • Yellow Solid PE Insulation
  • 80% CCA Braiding
  • High Quality PVC Jacket
  • 10 x 0.12mm CCA-Power Wire
  • PP Insulation-Power Wire
  • White PVC, RoHS Compliant
  • 75 Ohms CCTV Cable
  • 100M / Box / Carton
  • MOQ: 30 KM





Description:



Flexível Para CFTV Coaxial Cable 80% CCA Braiding for Security Camera in Brazil

 Flexível para cable is a specific type of CCTV coaxial cable , Flexível para cable

(Produced by ZION) isperfect for any type of surveillance camera installation.

Flexível para cable has a characteristic impedance of 75 ohms. ZION using best raw material

and best worker to produce Flexível para cable to meet high performance in practical application.

Flexível para cable is packed in 500FT/1000FT Plastic/Wooden spool, and will be layed on pallet to protect the spool and easier carry. Because of good managing methods,ZION’S price of Flexível para cable is not high although our quality is really high.





Applications:



Suitable for signal transmission

■ CCTV

■ Local Area Network

■ Digital video

■ Monitor/VDT display

■ Security Camera





Specifications:





Flexível Para CFTV Coaxial Cable 80% CCA Braiding for Security Camera in Brazil
Construction Parameters:
  Inner Conductor 8×0.14±0.1mm     Bare Copper
  Dielectric 2.40±0.05mm            Yellow Solid PE
  Shield Nom.2.88mm
  Strand 0.14mm Copper Clad Aluminum
  % Coverage 80 nom. Braiding
  Jacket 4.00±0.1mm                     High Quality PVC White
  Power Wire Conductor 10×0.12mm  Copper Clad Aluminum
  Power wire Diameter of insulation 0.91mm PP
  Power Wire Color Code Red,Black
  Jacket 3.0±0.1mm           High Quality PVC White
  * 1 Pair of wire twisted
  Application For Use in Intermediate CFTV Run Lengths

Electrical Characteristics:
  Capacitance NA
  Impedance
  Inner Conductor Resistance NA
  Return loss NA
  Velocity of Propagation  NA
  Sparker Test (VAC) 3
  Operating Temp Range  (PVC) -20 ℃ to 60℃
  RoHS YES

Attenuation(20℃):
Frequency
(MHZ)
Max Attenuation
(dB/100ft)
Max Attenuation
(dB/100m)
1
10
50
100
200
400
700
900
1000

Order Informations:
  Marking ZION Cabo Coaxial Flexível Para CFTV XXX M  DDMMYY
  Package 100M/Box/Carton
  Delivery time Normally 25 days after received the deposit.
  More informations  please contact with us.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and ZION.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery



Flexível Para CFTV Coaxial Cable 80% CCA Braiding for Security Camera in Brazil
