RG6 Siamese Cable 18AWG Copper 95% Copper Braid for Closed Circuit Television

China RG6 Siamese Cable 18AWG Copper 95% Copper Braid for Closed Circuit Television supplier
RG6 Siamese Cable 18AWG Copper 95% Copper Braid for Closed Circuit Television supplier RG6 Siamese Cable 18AWG Copper 95% Copper Braid for Closed Circuit Television supplier RG6 Siamese Cable 18AWG Copper 95% Copper Braid for Closed Circuit Television supplier

Large Image :  RG6 Siamese Cable 18AWG Copper 95% Copper Braid for Closed Circuit Television

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: ISO, UL, CE, RoHS
Model Number: RG6 CCTV Coaxial Cable

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 500FT, 1000FT, Plastic / Wooden Spool, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detailed Product Description
Conductor: Bare Copper Insulation: High Quality PVC In Red / Black
Shield: Bare Copper Braiding Jacket: High Quality PVC
Power Wire: Bare Copper Color: Black, White

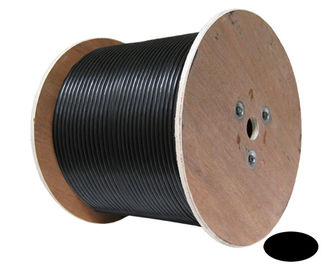

Package: 500FT, 1000FT, Plastic / Wooden Spool, Carton
High Light:

digital coaxial cable

,

outdoor coaxial cable





RG6 Siamese Cable 18AWG Copper 95% Copper Braid for Closed Circuit Television





Quick Detail:



  • RG6 Siamese Cable
  • CCTV Coaxial Cable
  • 18AWG BC Conductor
  • Foamed PE Insulation
  • 95% BC Braiding
  • 2C / 18 AWG BC Power
  • 16×0.254mm BC Power
  • 75 Ohms CCTV Coaxial Cable
  • High Quality PVC
  • RoHS Compliant
  • 500FT, 1000FT, Plastic / Wooden Spool, Carton
  • MOQ: 30 KM





Description:



RG6 Siamese Cable 18AWG Copper 95% Copper Braid for Closed Circuit Television

RG6 is a specific type of CCTV coaxial cable , RG6 (Produced by ZION) is perfect

for any type of surveillance camera installation. RG6 has a characteristic impedance of 75 ohms.

ZION using best raw material and best worker to produce RG6 to meet high performance in

practical application. RG6 is packed in 500FT/1000FT Plastic/Wooden Spool, and will be layed on

pallet to protect the spool and easier carry.Because of good managing methods,

ZION’S price of RG6 is not high although our quality is really high.





Applications:



Suitable for signal transmission

■ CCTV

■ Local Area Network

■ Digital Video

■ Monitor/VDT Display

■ Security Camera





Specifications:







RG6 Siamese Cable 18AWG Copper 95% Copper Braid for Closed Circuit Television

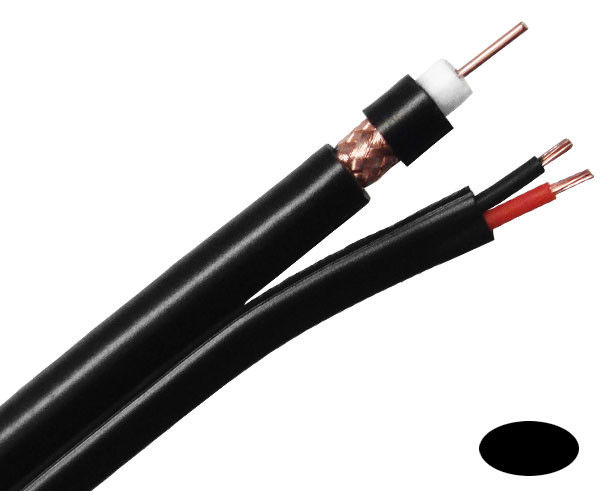

Construction Parameters:
  Inner Conductor 0.04"/1.02mm/18AWG Bare Copper
  Dielectric 0.175" /4.45mm           Foamed PE
  Shield 1 Bonded Aluminum Foil
  Shield 2 0.20"/5.1 mm Bare Copper Braiding
  % Coverage 95 nom
  Jacket 0.262±0.006"/6.65±0.15mm High Quality PVC

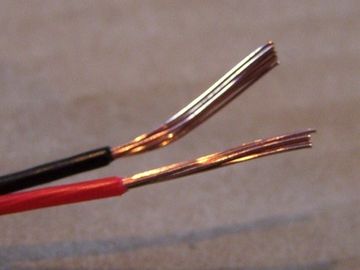

  Power Wire Conductor 2-18 AWG 16×0.001"/16×0.254mm Bare Copper
  Power wire Diameter of insulation 0.075"/1.90mm High Quality PVC
  Power Wire Color Code Red,Black
  Jacket 0.199"/5.05±0.1mm High Quality PVC
  Application For Use in Longer CCTV Run Lengths
  Limited Length Typical run length up to 1600 feet

Electrical Characteristics:
  Inner Conductor Resistance The Max.at 20℃ shall be  < 21.2 Ω/km  6.96 Ω/kft
  Capacitance 52 ±3 pF/m  17±0.3 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz: > 22dB
  Velocity of Propagation  0.85
  Sparker Test (VAC) 4

Attenuation(20℃):
Frequency
(MHZ)
Max Attenuation
(dB/100ft)
Max Attenuation
(dB/100m)
5 0.62  1.90
55 1.72  5.25
187 3.07  9.35
211 3.28  10.00
400 4.46  13.61
500 5.01  15.29
750 6.08  18.54
860 6.56  20.01
1000 7.05  21.49

Mechanical and Envrionmental Properties
  Cable bend radius 10 times the cable diameter
  Operating Temp Range  (PVC) -20 ℃ to 75℃
  Cable diamensions 6.86±0.15mm /0.27±0.006" High Quality PVC
  Cable weight

Order Informations:
  Marking

ZION RG6 Siamese Cable 95% BC + 18AWG/2C BC

CE RoHS  XXX M  DDMMYY

  Package 500FT, 1000FT, Plastic / Wooden Spool, Carton
  Delivery time Normally 25 days after received the deposit.
  More informations please contact with us.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and ZION.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery
