6 Cores Shielded Security Alarm Cables PVC Flame Retardant with RoHS Certificate

Good quality CATV Coaxial Cable for sales
Good quality CATV Coaxial Cable for sales
We started cooperation from 2013 until now. We are vey satisfied with stable quality cables with reasonable price offer. ZION is a very good partner!

—— Theo

I am impressed by quickly, professionally answer each time and very happy with their stable quality products!

—— Alexander

We have received the goods. They are of good quality and we will do more business with you in the future!

—— Nissim

I'm Online Chat Now

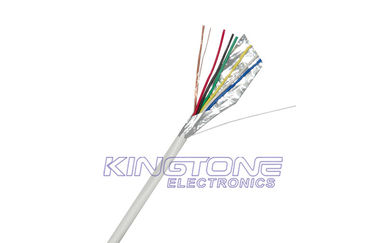

6 Cores Shielded Security Alarm Cables PVC Flame Retardant with RoHS Certificate

China 6 Cores Shielded Security Alarm Cables PVC Flame Retardant with RoHS Certificate supplier

Large Image :  6 Cores Shielded Security Alarm Cables PVC Flame Retardant with RoHS Certificate

Product Details:

Place of Origin: China
Brand Name: KINGTONE OR OEM
Certification: CE, RoHS, UL
Model Number: Security Alarm Cable 6 Cores Stranded
Contact Now
Detailed Product Description
Minimum Order Quantity: 30 KM Packaging Details: 100M Paper Reel, 300M Wooden Spool, Carton
Delivery Time: Normally 15 Days Payment Terms: T/T, L/C
Supply Ability: 50*20’GP / Month Conductor: Bare Copper
Insulation: PVC Shield: PET / AL-Foil
Drain Wire: Yes Rip Cord: Yes
Color: White Package: 100M Paper Reel, 300M Wooden Spool, Carton
High Light:

shielded Alarm Cable

,

screened alarm cable





6 Cores Shielded Security Alarm Cables PVC Flame Retardant with RoHS Certificate





Quick Detail:



  • 6 Cores Security Alarm Cable
  • 7 Stranded CU / CCA / TCCA Conductor
  • PVC Insulation
  • PVC ( RoHS) Flame Retardant, White
  • 100M Paper Reel, 300M Wooden Spool, Carton
  • Installing Surveillance Cameras in CCTV Systems
  • ISO, CE, UL, RoHS





Description:



Alarm Cable use conductor of  Stranded or Solid CU/CCA/TCCA conductor,mainly packed in 100m
Alarm cable jacket color normally is white. Unlike audio/visual or networking cables,
most alarm wire technology has not changed in decades even with advances in alarm systems
and their associated detection devices. This being said,the wiring that goes into an alarm
system is as critical as any wire can be. Fire and security alarm cable provides the basic
framework upon which all of a building's asset protection is based.

KINGTONE using best raw material and best worker to produce shielded and unshielded Alarm Cable
to meet high performance in practical application.





Applications:



Wiring Burglar & Security alarms, public address systems,intercoms,telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.



KT1309 6 Cores Alarm Cable 7 Stranded CU/CCA/TCCA Conductor 100M White

Unshielded Construction
Conductor 7 x 0.19mm  CU/CCA/TCCA
Cores 6
Insulation 0.95mm PVC
Drain Wire 7 x 0.19mm  CU/CCA/TCCA
Rip Cord Cotton Wire
Outer jacket Overall Diameter (mm) 4.1 ± 0.1 mm
Raw Material PVC(RoHs) flame retardant
Marking KINGTONE 6 Core Alarm Cable 7 Stranded Unshielded XXX M

Shielded Construction
Conductor 7 x 0.19mm  TC/BC/CCA/TCCA
Cores 6
Shielded Aluminum Foil
Insulation 0.95mm PVC
Drain Wire 7 x 0.19mm  TC/BC/CCA/TCCA
Rip Cord Cotton Wire
Outer jacket Overall Diameter (mm) 4.2 ± 0.1 mm
Raw Material PVC(RoHs) flame retardant
Marking KINGTONE 6 Core Alarm Cable 7 Stranded Shielded XXX M

Order Informations:
  Inner Package 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request)
  Outer Package Carton, Color Box, Pallet (or Per customer's request)
  Delivery time Normally 15 days after received the deposit.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
