Product Details:
|
| Minimum Order Quantity: | 30 KM | Packaging Details: | 100M Roll, 300M / 500M Wooden Spool, Carton |
|---|---|---|---|
| Delivery Time: | Normally 15 Days | Payment Terms: | T/T, L/C |
| Supply Ability: | 50*20’GP / Month | Conductor: | Bare Copper |
| Insulation: | Mylar PVC | Drain Wire: | Yes |
| Rip Cord: | Yes | Jacket: | Mylar PVC |
| Color: | Gray | Package: | 100M Roll, 300M / 500M Wooden Spool, Carton |
| High Light: | alarm system cable,screened alarm cable |
||
Quick Detail:
Description:
Applications:
Wiring Burglar & Security alarms, public address systems,intercoms,telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.
|

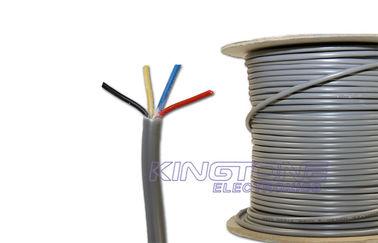

KT1313 Mylar Screened Cable 3 Pair 0.40mm2 0.50mm2 1.00mm2 Stranded Gray |
||
| 0.40mm2 Construction | ||
| Conductor | 12 x 0.20mm | CU/CCA/TCCA |
| Pairs | 1 | |
| Insulation | 1.50mm PVC | |
| Drain Wire | 12 x 0.20mm | CU/CCA/TCCA |
| Outer jacket | Overall Diameter (mm) | 6.3 ± 0.1 mm |
| Thickness (mm) | 0.80 mm | |
| Raw Material | PVC(RoHs) flame retardant | |
| Marking | KINGTONE Mylar Screened Cable 3 Pair 0.40mm2 Stranded Gray | |
| 0.50mm2 Construction | ||
| Conductor | 16 x 0.20mm | CU/CCA/TCCA |
| Pairs | 1 | |
| Insulation | 1.65mm PVC | |
| Drain Wire | 16 x 0.20mm | CU/CCA/TCCA |
| Outer jacket | Overall Diameter (mm) | 6.8 ± 0.1 mm |
| Thickness (mm) | 0.80 mm | |
| Raw Material | PVC(RoHs) flame retardant | |
| Marking | KINGTONE Mylar Screened Cable 3 Pair 0.50mm2 Stranded Gray | |
| 1.00mm2 Construction | ||
| Conductor | 32 x 0.20mm | CU/CCA/TCCA |
| Pairs | 1 | |
| Insulation | 2.20mm PVC | |
| Drain Wire | 32 x 0.20mm | CU/CCA/TCCA |
| Rip Cord | Cotton Wire | |
| Outer jacket | Overall Diameter (mm) | 8.4 ± 0.1 mm |
| Thickness (mm) | 0.80 mm | |
| Raw Material | PVC(RoHs) flame retardant | |
| Marking | KINGTONE Mylar Screened Cable 3 Pair 1.00mm2 Stranded Gray | |
| Order Informations: | ||
| Inner Package | 100m/Roll, 500m/Spool (or Per customer's request) | |
| Outer Package | Carton, Color Box, Pallet (or Per customer's request) | |
| Delivery time | Normally 15 days after received the deposit. | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and KINGTONE.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
