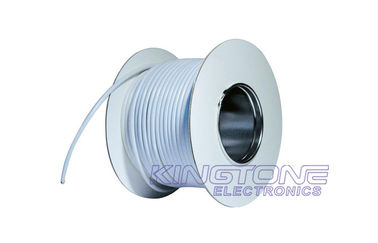

Shielded 0.28mm2 Security Alarm Cable Solid CU / CCA / TCCA Conductor PVC Jacket

: Large Image : Shielded 0.28mm2 Security Alarm Cable Solid CU / CCA / TCCA Conductor PVC Jacket

Product Details:

Place of Origin:	China
Brand Name:	KINGTONE OR OEM
Certification:	CE, RoHS, UL
Model Number:	Security Alarm Cable 0.28mm2 Shielded

Contact Now

Detailed Product Description

Minimum Order Quantity:	30 KM	Packaging Details:	100M Paper Reel, 300M Wooden Spool, Carton
Delivery Time:	Normally 15 Days	Payment Terms:	T/T, L/C
Supply Ability:	50*20’GP / Month	Conductor:	Bare Copper
Insulation:	PVC	Shield:	PET / AL-Foil
Drain Wire:	Yes	Rip Cord:	Yes
Jacket:	PVC	Color:	White
Package:	100M Paper Reel, 300M Wooden Spool, Carton
High Light:	shielded Alarm Cable , alarm system cable

Shielded 0.28mm2 Security Alarm Cable Solid CU / CCA / TCCA Conductor PVC Jacket

Quick Detail:

Security Alarm Cable
Solid CU / CCA / TCCA Conductor
PVC Insulation
PVC ( RoHS) Flame Retardant
100M Paper Reel, 300M Wooden Spool, Carton
Installing Surveillance Cameras in CCTV Systems
ISO, CE, UL, RoHS

Description:

Alarm Cable use conductor of Stranded or Solid CU/CCA/TCCA conductor,mainly packed in 100m

Alarm cable jacket color normally is white. Unlike audio/visual or networking cables,

most alarm wire technology has not changed in decades even with advances in alarm systems

and their associated detection devices. This being said,the wiring that goes into an alarm

system is as critical as any wire can be. Fire and security alarm cable provides the basic

framework upon which all of a building's asset protection is based.

KINGTONE using best raw material and best worker to produce shielded and unshielded Alarm Cable

to meet high performance in practical application.

Applications:

Wiring Burglar & Security alarms, public address systems,intercoms,telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.

KT-1304 Alarm Cable 7 Stranded CU/CCA/TCCA Conductor 0.28mm2 Shielded 100M White

Construction
Conductor	0.60mm TC/BC/CCA/TCCA
Shielded	AL/PE FOIL
Insulation	0.95mm PVC
Drain Wire	TC/BC/CCA/TCCA
Rip Cord	Cotton Wire
Outer jacket	PVC(RoHs) flame retardant

Structure of 0.28mm2 soft alarm cable
Serial No.	Section	Specification	Qverall Diameter(mm)
E-01	2*0.28mm2	4*1/0.60	4.4
E-02	4*0.28mm2	6*1/0.60	5.1
E-03	6*0.28mm2	8*1/0.60	5.4
E-04	8*0.28mm2	10*1/0.60	6.2
E-05	10*0.28mm2	12*1/0.60	6.5
E-06	12*0.28mm2	14*1/0.60	6.9
E-07	16*0.28mm2	20*1/0.60	8.1
E-08	24*0.28mm2	30*1/0.60	9.7
F-01	2*0.28mm2	2*1/0.60	3.8
F-02	4*0.28mm2	4*1/0.60	4.5
F-03	6*0.28mm2	6*1/0.60	4.8
F-04	8*0.28mm2	8*1/0.60	5.6
F-05	10*0.28mm2	10*1/0.60	5.9
F-06	12*0.28mm2	12*1/0.60	6.3
F-07	16*0.28mm2	16*1/0.60	7.5
F-08	24*0.28mm2	24*1/0.60	9.1
G-01	2*0.28mm2	2*1/0.60	3.7
G-02	4*0.28mm2	4*1/0.60	4.4
G-03	6*0.28mm2	6*1/0.60	4.7
G-04	8*0.28mm2	8*1/0.60	5.5
G-05	10*0.28mm2	10*1/0.60	5.8
G-06	12*0.28mm2	12*1/0.60	6.2
G-07	16*0.28mm2	16*1/0.60	7.4
G-08	24*0.28mm2	24*1/0.60	9
Order Informations:
Marking	KINGTONE 0.28mm2 Unshielded Alarm Cable XXX M (or Per customer's request)
Inner Package	100m/Roll, 100m/Spool,305m/Spool (or Per customer's request)
Outer Package	Carton, Color Box, Pallet (or Per customer's request)
Delivery time	Normally 15 days after received the deposit.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E: 5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

The QC staff will check the material, process product

and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

We are skilled at effective communication to interact with customers.

In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery

Tag:

shielded Alarm Cable,

alarm system cable
