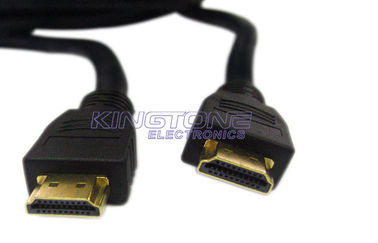

High Speed HDMI 1.4 Cable 32 AWG Stranded Tinned Copper Type C Connector Shield HDMI PVC Jacket

HDMI 1.4 Cable 32 AWG Stranded Tinned Copper Type C Connector Shield HDMI PVC Jacket

Quick Detail:

HDMI 1.4 HDMI-HDMI 32 AWG

7×0.08mm Stranded Tinned Copper

Connector Type C

Shield: Aluminum Mylar+ Tinned Copper Braid

Jacket: 5 mm PVC

HDMI Ethernet Channel

Audio Return Channel

Description:

KT2004 HDMI 1.4  HDMI-HDMI  32AWG 7×0.08mm Stranded Tinned Copper Type C

As high-definition audio/video technology continues to advance, the specification for HDMI equipment and cabling is occasionally modified to ensure broad compatibility and maximum performance. Version 1.4 is the latest iteration of the HDMI spec, as issued by HDMI Licensing, LLC.

Per the HDMI specification, only four HDMI cable types exist: Standard Speed, Standard Speed with Ethernet, High Speed, and High Speed with Ethernet. The HDMI organization has put in place a rule that requires all HDMI cables to be marketed in this manner. Therefore, you will not see our cables marketed as HDMI 1.4 cables. Keep in mind that installing a cable supporting HDMI 1.4 features does not give your existing devices of previous HDMI specifications the ability to experience 4K x 2K resolution, 3D, audio return or Ethernet. New A/V equipment supporting desired features is required in order to experience the newly specified features.

KINGTONE using best raw material and best worker to produce HDMI 1.4 to meet high performance in practical application.Because of good managing methods, KINGTONE’S price of HDMI 1.4 is not high although our quality is really high.

Application:

HDMI Ethernet Channel:A data channel will be added to the HDMI connection, enabling high-speed bi-directional communication.

Audio Return Channel:The new spec will enable a TV to send an audio signal back to an A/V receiver for processing and playback.

3D Over HDMI:While some 3D applications and equipment exist today, the new spec defines common 3D formats and resolutions for HDMI-enabled devices.

4K x 2K Resolution Support:The new spec enables HDMI devices to support extremely high HD resolutions, effectively four times the resolution of a 1080p device.

Content Type:Allows for real-time signaling of content types between the display and source devices, enabling a TV to optimize the picture settings based on content type.

Expanded Support for Color Spaces:HDMI now supports color spaces designed specifically for digital still cameras, enabling more accurate color rendering when viewing digital photos.

HDMI Micro Connector (Type D):The HDMI Micro connector is a significantly smaller 19-pin HDMI connector supporting up to 1080p resolutions for portable devices such as cell phones, portable media players, and digital cameras.

Automotive Connection System (Type E):The Automotive Connection System is a cabling specification designed to be used for in-vehicle HD content distribution.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A,Incoming material inspected by QC.

B,Manufacturing Process Control

C: Workers trained daily/weekly/monthly

D: Work instructions manual at each work station

E:5S system implemented

F: Machine maintenance procedure

G: Quality Control and Final Inspection

  The QC staff will check the material, process product and final product according to the specification or test procedure.

2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE

3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
