Product Details:
|
| Minimum Order Quantity: | 30 KM | Packaging Details: | 1000FT, Pull Box, Wooden Spool, Pallet |
|---|---|---|---|
| Delivery Time: | Normally 15 Days | Payment Terms: | T/T, L/C |
| Supply Ability: | 50*20’GP / Month | Conductor: | Bare Copper |
| Insulation: | HDPE | Shield: | PET / AL-Foil |
| Jacket: | PVC | Color: | Black |
| Package: | 1000FT, Pull Box, Wooden Spool, Pallet | ||
| High Light: | cat5e networking cable,lan network cable |
||

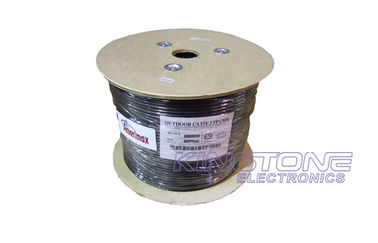

UV-PE Jacket UTP CAT6 Network Cable with 23 AWG Soild Copper Conductor
Quick Detail:
Description:
KINGTONE NETCONNECT Enhanced Category 6A (Cat6A) UTP cables exceed TIA/EIA-568-B.2,
ITA/EIA 568-C and ISO/IEC 11801 Class D, IEC61156-5, EN50288 and EN50173
performance requirements, providing extra headroom for a more robust cabling system.
They comply with all of the performance requirements for current and proposed applications
such as Gigabit Ethernet 1000Base-T IEEE802.3ab,100BASE Tx, token ring, 155 Mbps ATM,
100 Mbps, 1.2Gbps, TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and
analog and digital voice (VoIP) and VoIP Camera application.
The cable is available in white, gray, blue and yellow, and packaged as wooden reels,
reelin- box and pull box.
KINGTONE using best raw material and best worker to produce UTP CAT 6A to meet
high performance in practical application.
Because of good managing methods, KINGTONE’S price of UTP CAT 6A is not high
although our quality is really high.
|
KT0264 UTP CAT6 OUTDOOR Network Cable 4Pairs 23AWG Solid Bare Copper UV-PE |
||||||
| Application& Industry Standard: | ||||||
| Telephony Voice Wiring,10 Base-T,100 Base-T4,UL Subject 444,EIA/TIA568 & ISO/IEC 11801 | ||||||
| 100 Mbps TP-PMD(ANSI X3T9.5),TIA/EIA-568-B.2 , ISO.IEC 11801 Class D | ||||||
| IEC61156-5, IEC60332-1, EN50288, EN50173-1 | ||||||
| Construction | ||||||
| Center conductor | 4Pairs 23 AWG Bare Copper | |||||
| Dielectric | 0.99mm/ 0.39'' nom dia, 0.217mm/ 0.0085'' thickness | |||||
| Filler | Polyethylene Cross | |||||
| Outer jacket | 6.0±0.1mm UV-PE | |||||
| Insulation colors | Blue,White/Blue | |||||
| Orange,White/Orange | ||||||
| Green,White/Green | ||||||
| Brown,White/Brown | ||||||
| Electrical Characteristics at 20 °C | ||||||
| Impedance | 100 ± 15 Ω | |||||
| DC resistance(max) | 8.9 Ω/100m @20℃ | |||||
| Mutual capacitance(max) | 5.6 pF/100m @1kHz | |||||
| Delay Skew | 45 | |||||
| Voltage | 300 Volts AC or DC | |||||
| Mechanical Characteristics at 20 °C | ||||||
| Propagation Delay(max) | 540 ns@10MHZ | |||||
| Min.Bending radius | 4×outside diameter of Jacket | |||||
| Operating Temperature | -20 ℃ to 60℃ | |||||
| Performance Characteristics(Exceed TIA/EIA-568-B.2-1 Cat 6) | ||||||
| Frequency | Attenuation (Max.) | NEXT (Min.) | PS-NEXT | ELFEXT | PS-ELFEXT | Return Loss |
| 1MHz | 1.9 dB/100m | 72 dB | 69 dB | 68 dB | 65 dB | 20 dB |
| 10MHz | 5,9 dB/100m | 65 dB | 62 dB | 53 dB | 50 dB | 23 dB |
| 16MHz | 7,5 dB/100m | 61 dB | 58 dB | 48 dB | 45 dB | 26 dB |
| 25MHz | 9,3 dB/100m | 55 dB | 52 dB | 45 dB | 42 dB | 25 dB |
| 40MHz | 12,1 dB/100m | 53 dB | 50 dB | 42 dB | 39 dB | 23 dB |
| 60MHz | 14,8 dB/100m | 52 dB | 49 dB | 35 dB | 32 dB | 22 dB |
| 100MHz | 19,3 dB/100m | 50 dB | 47 dB | 31 dB | 28 dB | 22 dB |
| 150MHz | 23,6 dB/100m | 43 dB | 40 dB | 28 dB | 25 dB | 19 dB |
| 200MHz | 27,5 dB/100m | 40 dB | 37 dB | 24 dB | 21 dB | 18 dB |
| 250MHz | 30,6 dB/100m | 38 dB | 35 dB | 21 dB | 18 dB | 18 dB |
| * PVC – Polyvinylchlorid * AWG - American Wire Gauge * AL/PE - Aluminium/Polyethylene | ||||||
| Order Informations: | ||||||
| Marking | KINGTONE KT0264 UTP CAT6 OUTDOOR XXX M/FT | |||||
| Package | 305M/1000FT Pull Box/Pallet (or Per customer's request) | |||||
| Delivery time | Normally 15 days after received the deposit. | |||||
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and KINGTONE.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
