Product Details:
|
| Minimum Order Quantity: | 3OKM | Packaging Details: | 500FT/1000FT Plastic/Wooden Spool |
|---|---|---|---|
| Delivery Time: | Normally 15 Days | Payment Terms: | T/T,L/C |
| Supply Ability: | 50*20’GP/Month | ||
| High Light: | cctv camera cable,siamese cctv cable |
||

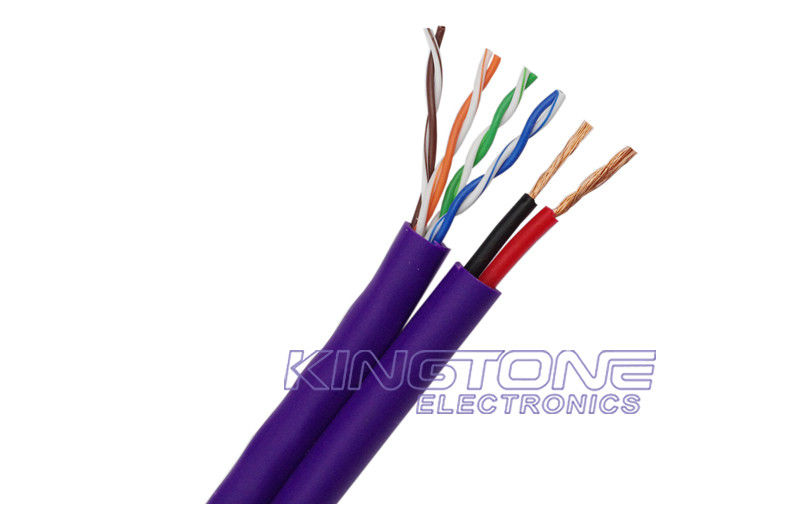

Purple Category 5 Security Camera Cables 24AWG Solid Bare Copper IP Cable with 4 Conductor
Quick Detail:
Description:
KINGTONE NETCONNECT Enhanced Category 5 (Cat5e) U/UTP cables exceed TIA/EIA-568-B.2,
ITA/EIA 568-C and ISO/IEC 11801 Class D, IEC61156-5, EN50288 and EN50173
performance requirements, providing extra headroom for a more robust cabling system.
They comply with all of the performance requirements for current and proposed applications
such as Gigabit Ethernet 1000Base-T IEEE802.3ab,100BASE Tx, token ring, 155 Mbps ATM,
100 Mbps, 1.2Gbps, TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and
analog and digital voice (VoIP) and VoIP Camera application.
The cable is available in white, gray, blue and yellow, and packaged as wooden reels,
reelin- box and pull box.
KINGTONE using best raw material and best worker to produce UTP CAT 5e to meet
high performance in practical application.
Because of good managing methods, KINGTONE’S price of UTP CAT 5e is not high
although our quality is really high.
|
KT0751 2 Pair Cat5E Type 24AWG Solid Bare Copper +2C18AWG Siamese Security Camera Cable |
|
| Construction Parameters: | |
| Description | 2 Pair Cat5E Type + 2C-18AWG Siamese Construction |
| Video and Control Pairs | |
| Inner Conductor | 0.0196"/0.50mm/24AWG Bare Copper |
| Stranding | Solid |
| Insulation Material | Polyethylene 0.008"/0.2mm |
| Number of Conductors | 4(2 Pair) |
| Shield | None |
| Power Conductors | |
| Inner Conductor | 18AWG Bare Copper |
| Stranding | 7×26AWG / 7×0.0145" |
| Insulation Material | PVC 0.008"/0.2mm |
| Number of Conductors | 2 |
| Shield | None |
| Electrical Characteristics: | |
| Video and Control Pairs | |
| Temperature Rating | -20℃ to 60℃ |
| Operating Voltage | 300 V RMS |
| Max.Capacitance @1 KHz | 14 pf/ft |
| Nom.Impedance | 100 Ohms |
| Nom.Velocity of Propagation | 66% |
| DC Resistance per Cond. @ 20℃ | 26 Ohms/1M' Nom |
| Insulation Colors | Blue/White-Blue, Orange/White-Orange |
| Power Conductors | |
| Temperature Rating | -20℃ to 60℃ |
| Operating Voltage | 300 V RMS |
| Max.Capacitance @1 KHz | NA |
| DC Resistance per Cond. @ 20℃ | 6.2 Ohms/1M' Nom |
| Insulation Colors | Black, Red |
| Overall Construction | |
| Jacket Type | PVC |
| Jacket Color | Siamese-Gray |
| Nom.O.D. | 0.180" × 0.340" |
| Mechanical Properties | |
| Max.Recommended Pull Tension | 33 lbs. |
| Min. Bend Radius(Install) | 3.40" |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and KINGTONE.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
