Blue Indoor 12 Core PVC Fiber Optic Network Cable G.652D , Multimode Fiber Optic Cable

China Blue Indoor 12 Core PVC Fiber Optic Network Cable G.652D , Multimode Fiber Optic Cable supplier
Blue Indoor 12 Core PVC Fiber Optic Network Cable G.652D , Multimode Fiber Optic Cable supplier Blue Indoor 12 Core PVC Fiber Optic Network Cable G.652D , Multimode Fiber Optic Cable supplier

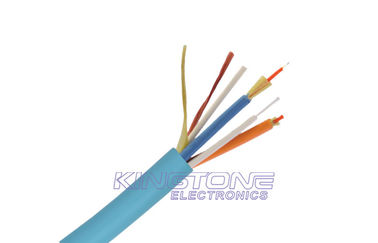

Large Image :  Blue Indoor 12 Core PVC Fiber Optic Network Cable G.652D , Multimode Fiber Optic Cable

Product Details:

Place of Origin: China
Brand Name: KINGTONE OEM
Certification: CE,RoHS, VDE,UL,CUL,LPCB
Model Number: KT3014 Indoor Soft Fiber Optic Cable
Contact Now
Detailed Product Description
Minimum Order Quantity: 3OKM Packaging Details: 500FT/1000FT Plastic/Wooden Spool
Delivery Time: Normally 15 Days Payment Terms: T/T,L/C
Supply Ability: 50*20’GP/Month
High Light:

heat resistance cable

,

fiber optic ethernet cable





Blue Indoor 12 Core PVC Fiber Optic Network Cable G.652D , Multimode Fiber Optic Cable





Quick Detail:



  •  Indoor Soft Fiber Optic Cable
  •  G.652D or G.657A
  •  Cable Diameter 2~12 core: 0.9mm
  •  Tensile Strength Long/Short Term: 200/600N
  •  Crush Resistance Long/Short Term: 100/1000 N/100m
  •  Bending Radius Static/Dynamic: 10D/20D





Description:

In the structure of cable, the multiple Kevlar yarn is used as reinforcement on the outdise of the tight jacketed single mode or multimode optical fiber and the fire retardant flat sheath is extruded to form an optical cable. The performance of the product is better than the mational standard as the premium optical fiber is selected with rational number of Kevlar yarn and design tension and made by special equipment with precision mold.





Applications:

Induct outdoor wiring into indoor, for patch cords and connectors, for Fanouts.

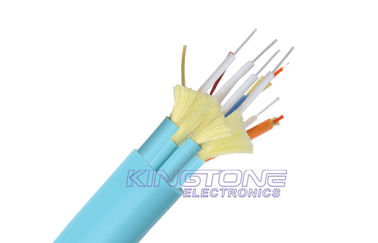

KT3014 Indoor Tight Buffered Soft Optical Fiber Cable
2~12 Core PVC Jacket
Applications:
Induct outdoor wiring into indoor, for patch cords and connectors, for Fanouts.
Description&Standards :

In the structure of cable, the multiple Kevlar yarn is used as reinforcement on the outdise of the tight

jacketed single mode or multimode optical fiber and the fire retardant flat sheath is extruded to form

an optical cable.Th e performance of the product is better than the mational standard as the premium

optical fiber is selected with rational number of Kevlar yarn and design tension and made by special

equipment with precision mold.

Characteristics:
(1)A perfect screw of good linearity and small extrusion rate is chosen for
processing tight jacketed optical fiber and good stripping;
(2)Both tight jacket of optical fiber and external sheath are perfect fire retardant sheathing material;
(3)Before tight jacketing of optical fiber, the optical fiber has been strictly selected so that both geometric
 dimension and transmission performance of optical cable could satisfy customer demand.

Technical Parameters:
Cable Type Cable Diameter
(mm)
Cable Weight
    (kg/km)
Tensile Strength
Long/Short Term
         (N)
Crush Resistance
Long/Short Term
(N/100mm)
Bending Radius
Static/Dynamic
(mm)
GJFJV-2~12 0.9 80 200/600 100/1000 10D/20D

 Optical fiber Characteristics:
    9/125μm 50/125μm 62.5/125μm
Attenuation
(+20℃)
@850nm   ≤3.5 dB/km ≤3.5 dB/km
@1300nm   ≤1.5 dB/km ≤1.5 dB/km
@1310nm ≤0.8 dB/km
@1550nm ≤0.6 dB/km
Bandwidth (Class A) @850nm   ≥200 MHz·km ≥160 MHz·km
  @1300nm   ≥400 MHz·km ≥300 MHz·km
Storage/Operating Temperature : -40℃ to + 70℃
Order Informations:
  Marking KINGTONE KT3014 indoor soft optical fiber cable XXX M/FT
  Package 1000M/2000M/3000M, Drum/Pallet (or Per customer's request)
  Delivery time Normally 15 days after received the deposit.





Competitive Advantage:



1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A,Incoming material inspected by QC.

B,Manufacturing Process Control

  A: Manufacturing procedure

  B: Workers trained daily/weekly/monthly

  C: Work instructions manual at each work station

  D:5S system implemented

  E: Machine maintenance procedure

C, Quality Control and Final Inspection

  The QC staff will check the material, process product and final product according to the specification or test procedure.

2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE

3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
