Product Details:
|
| Minimum Order Quantity: | 3OKM | Packaging Details: | 500FT/1000FT Plastic/Wooden Spool |
|---|---|---|---|
| Delivery Time: | Normally 15 Days | Payment Terms: | T/T,L/C |
| Supply Ability: | 50*20’GP/Month | ||
| High Light: | heat resistance cable,fiber optic ethernet cable |
||

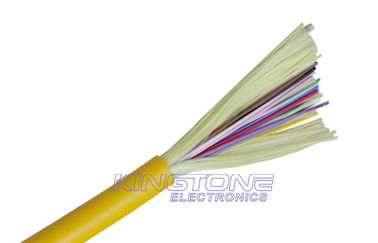

GJFJV Water Blocking Single Core Fiber Optic Network Cable for Distribution
Quick Detail:
Description:
In the structure of Model GJFJV single core optical cable, the multiple Kevlar yarn is used as reinforcement on the outdise of the tight jacketed single mode or multimode optical fiber and the fire retardant sheath is extruded to form an optical cable. The performance of the product is better than the mational standard as the premium optical fiber is selected with rational number of Kevlar yarn and design tension and made by special equipment with precision mold.
Applications:
Building to building interconnection;indoor distribution; pigtal of the instrument type communication equipment,
as the moveable connect line for patch cords and connectors.
|

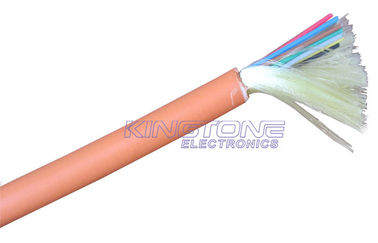

KT3013 GJFJV Single Core Tight Wrapped Indoor Fiber Optical Cable 2~24 Core PVC Jacket |
||||||
| Applications: | ||||||
|
Building to building interconnection;indoor distribution; pigtal of the instrument type communication equipment, as the moveable connect line for patch cords and connectors. |
||||||
| Description: | ||||||
|
In the structure of Model GJFJV single core optical cable, the multiple Kevlar yarn is used as reinforcement on to form an optical cable. The performance of the product is better than the mational standard as the premium optical fiber is selected with rational number of Kevlar yarn and design tension and made by special equipment with precision mold. |
||||||
| Characteristics: | ||||||
| (1)A perfect screw of good linearity and small extrusion rate is chosen for processing tight jacketed optical fiber adn good stripping; |
||||||
| (2)Both tight jacket of optical fiber and external sheath are perfect fire retardant sheathing material; | ||||||
| (3)Before tight jacketing of optical fiber, the optical fiber has been strictly selected so that both geometric dimension and transmission performance of optical cable could satisfy customer demand. |
||||||
| Technical Parameters: | ||||||
| Cable Type | Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
|
| GJFJV-2~24 | 0.9 | 80 | 200/600 | 100/1000 | 10D/20D | |
| Optical fiber Characteristics: | ||||||
| 9/125μm | 50/125μm | 62.5/125μm | ||||
| Attenuation (+20℃) |
@850nm | ≤3.5 dB/km | ≤3.5 dB/km | |||
| @1300nm | ≤1.5 dB/km | ≤1.5 dB/km | ||||
| @1310nm | ≤0.8 dB/km | |||||
| @1550nm | ≤0.6 dB/km | |||||
| Bandwidth (Class A) | @850nm | ≥200 MHz·km | ≥160 MHz·km | |||
| @1300nm | ≥400 MHz·km | ≥300 MHz·km | ||||
| Storage/Operating Temperature : -40℃ to + 70℃ | ||||||
| Order Informations: | ||||||
| Marking | KINGTONE KT3013 GJFJV XXX M/FT (or Per customer's request) | |||||

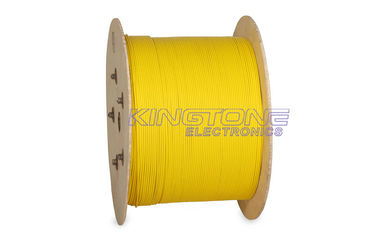

| Package | 1000M/2000M/3000M, Drum/Pallet (or Per customer's request) | |||||
| Delivery time | Normally 15 days after received the deposit. | |||||
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A,Incoming material inspected by QC.
B,Manufacturing Process Control
A: Manufacturing procedure
B: Workers trained daily/weekly/monthly
C: Work instructions manual at each work station
D:5S system implemented
E: Machine maintenance procedure
C, Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE
3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
