F Type Male Bulkhead Coaxial Cable Connectors 75 Ohm for RG58 RG 59 RG6

F Type Male Bulkhead Coaxial Cable Connectors 75 Ohm for RG58 RG59 RG6

Quick Detail:

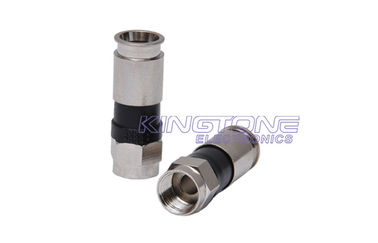

• Type F Male Connectors

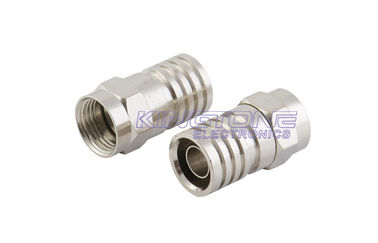

• Premium Grade Crimp Plugs
• Premium Grade Compression Plugs

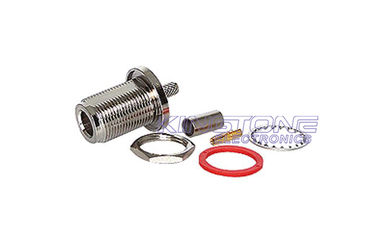

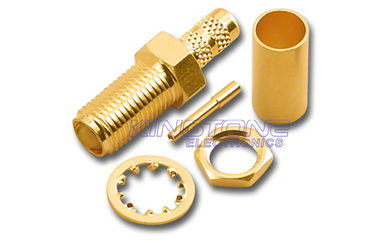

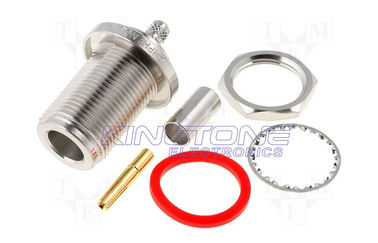

• Type F Female Bulkhead Connectors
• For RG58 , RG 59 , RG6
• 75 Ohms
• Captive gold plated center pin requires no soldering or crimping
• Nickel plated brass body ideal for outdoor use
• Competitive price with good and stable quality

Description:

The F connector is a coaxial RF connectorcommonly used for "over the air"terrestrial television,

cable televisionand universally for satellite televisionand cable modems, usually with RG6/U cableor,

in older installations, with RG-59/U cable.



The F connector is inexpensive, yet has good 75 Ω impedance match up to 1 GHz[ and has usable

bandwidth up to several GHz. One reason for its low cost is that it uses the solid conductor (center wire)

of the specified types of coaxial cable as the pin of the male connector. This design is subject to the surfaceproperties of the inner conductor (which must be solid wire) and is not corrosion resistant; hence waterproofversions are needed for outside use (for example, on aerials). Corrosion resistance can be improved by

coating all bare copper wires with silicone grease. The male connector body is typically crimped,

or sometimes screwed, on to the exposed outer braid. The cable industry standard now is to use

compression fittings.Female connectors have a 3/832 UNEF thread (9.525mm diameter).

Most male connectors have a matching threaded connecting ring, though pushon versions

are also available.

Push on F connector ends provide poor shielding against airborne signals (e.g., a nearby TV, Radio,

Cell Phone, Cordless Phone, Government radiolocation on 54 - 1002 MHz band transmitters and

will interfere with a CATV station).

It is suitable for domestic terrestrial, cable, and satellite TV installations and offers significant improvements

over the Belling-Lee connector (IEC 169-2) used on European terrestrial receivers. It requires slightly more care

to properly install the male

connector to the cable than with BellingLee type and attention should always be paid to the quality of the

connector and matching with the cable size.

Applications:

Suitable for cable termination for miniature-to-subminiature coaxial cable

■ RADIO

■ TELEVISION

■ RADIO-FREQUENCY ELECTRONIC EQUIPMENT

■ TEST INSTRUMENTS

■ VIDEO SIGNALS

 ■ 10BASE2 COMPUTER NETWORKS

Specification

Competitive Advantage:

1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
