RG6 Tri. CATV Coaxial Cable 18AWG CCS Conductor PVC Jacket with Messenger

China RG6 Tri. CATV Coaxial Cable 18AWG CCS Conductor PVC Jacket with Messenger supplier

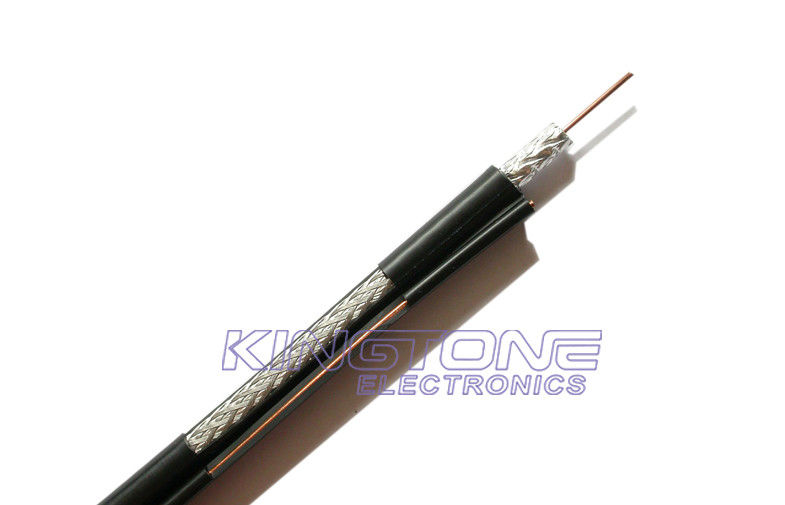

Large Image :  RG6 Tri. CATV Coaxial Cable 18AWG CCS Conductor PVC Jacket with Messenger

Product Details:

Place of Origin: China
Brand Name: KINGTONE OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: CATV RG6 Tri. PVC with Messenger
Contact Now
Detailed Product Description
Minimum Order Quantity: 30 KM Packaging Details: 100M, 305M, Wooden Spool, Carton
Delivery Time: Normally 15 Days Payment Terms: T/T, L/C
Supply Ability: 50*20’GP / Month Conductor: CCS
Dielectric: Foamed PE Shield 1: AL-Foil
Shield 2: Aluminum Jacket: PVC
Color: Black Or White Package: 100M, 305M, Wooden Spool, Carton
High Light:

digital coaxial cable

,

outdoor coaxial cable





RG6 Tri. CATV Coaxial Cable 18AWG CCS Conductor PVc Jacket with Messenger





Quick Detail:



  • RG6 Tri. CATV Coaxial Cable
  • 18AWG CCS Conductor
  • 77% AL Braiding
  • Foamed PE Insulation
  • Bonded AL-Foil
  • Non-Bonded AL-Foil
  • Zinned Steel Messenger
  • Tested to 3GHz
  • ISO,CE,RoHS,UL
  • 100M, 305M, Wooden Spool, Carton





Description:



KT0654 RG6 Tri. CATV COAXIAL CABLE 18AWG CCS 77% AL Braiding PVC Messenger

 is a specific type of CATV coaxial cable , RG 6(Produced by KINGTONE) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG 6 has a  characteristic

impedance of 75 ohms. KINGTONE using best raw material and best worker to produce

RG 6 to meet high performance in practical application. RG 6 is packed in 300M/1000FT/

1000M wooden spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, KINGTONE’S price of RG 6 is not high although

our quality is really high.





Applications:



Suitable for RF Signal Transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital Video

■ Antennas



KT0654 RG6 Tri. CATV Coaxial Cable 18AWG CCS Bonded AL-Foil 77% AL Braiding PVC Messenger
Construction Parameters:
  Inner Conductor 0.040"/1.02mm/18AWG  Copper Clad Steel
  Dielectric 0.180"/4.57mm Foamed PE Gas Expanded Polyethylene
  Shield 1 0.187"/4.75mm  Bonded Aluminum Polyproylene
  Shield 2 77% coverage   Aluminum braid wire
  Shield 3 Laminated Aluminum Tape Non-Bonded
  Jacket 0.278"±0.006"/7.06±0.15mm  PVC
  Jacket Thickness 0.030"/0.76mm
  Messenger  0.051"/1.30mm
  Minimum Breaking Strength 180lbs./82kg
  Application For Use in Longer CATV  Run Lengths

Electrical Characteristics:
  Inner Conductor Resistance The Max. at 20℃ shall be         <  87 Ω/km ; < 26.6Ω/1000ft
  Capacitance 52 ±3 pF/m            15.9 ±0.9 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz:  > 22dB
  Velocity of Propagation  0.85
  Sparker Test (VAC) 4

Attenuation(20℃):
Frequency
           (MHZ)
Max Attenuation
(dB/100ft)
Max Attenuation
(dB/100m)
5 0.58  1.90
55 1.60  5.25
83 1.95  6.40
187 2.85  9.35
211 3.05  10.00
250 3.30  10.82
300 3.55  11.64
350 3.85  12.63
400 4.15  13.61
450 4.40  14.43
500 4.66  15.29
550 4.90  16.08
600 5.10  16.73
750 5.65  18.54
865 6.10  20.01
1000 6.55  21.49

Mechanical and Envrionmental Properties:
  Cable bend radius 10 times the cable diameter
  Operating Temp Range  (PVC) -20 ℃ to 60℃
  Cable diamensions 0.2799"±0.006''/7.11±0.15 mm PVC

Order Informations:
  Marking

KINGTONE KT0654 RG6 77% Tri Bonded PVC Messenger

CATV COAXIAL CABLE

×××M/FT

  Package 500FT/Pull Box, 1000FT/Wooden Spool/Pallet
  Delivery time Normally 25 days after received the deposit.
  More informations Please contact with us.
