Product Details:
|
| Minimum Order Quantity: | 30 KM | Packaging Details: | 500FT/1000FT Plastic/Wooden Spool |
|---|---|---|---|
| Delivery Time: | Normally 15 Days | Payment Terms: | T/T,L/C |
| Supply Ability: | 50*20’GP/Month | ||
| High Light: | outdoor coaxial cable,hd coaxial cable |
||

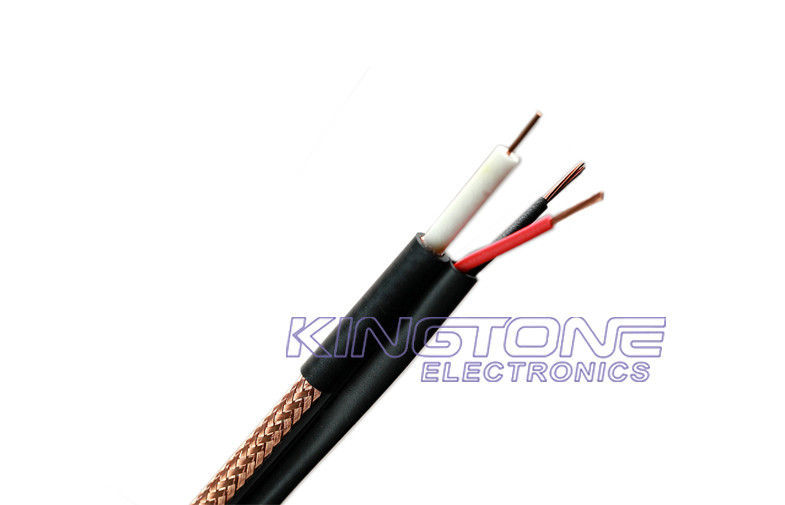

RG59U 75Ohm CCTV Coaxial Cable with 20AWG BC conductor , Solid PE Insulation Cable
Quick Detail:
Description:
KT0721 RG59/U CCTV Coaxial Cable 95% BC Braiding + 2C/18AWG Siamese
RG59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by KINGTONE) is perfect
for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.
KINGTONE using best raw material and best worker to produce RG59/U to meet high performance in
practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on
pallet to protect the spool and easier carry.Because of good managing methods,
KINGTONE’S price of RG59/U is not high although our quality is really high.
Applications:
Suitable for signal transmission
■ CCTV
■ Local Area Network
■ Digital video
■ Monitor/VDT display
■ Security Camera
Specifications:
| KT0721 RG59/U CCTV Coaxial Cable 95% BC Braiding + 2C/18AWG Siamese | ||
| Construction Parameters: | ||
| Inner Conductor | 0.032"/0.81mm/20AWG | Bare Copper |
| Dielectric | 0.170" /3.42±0.10mm | Foam FEP |
| First Shield | Nom. 0.154''±0.006"/3.91±0.15mm | Braid |
| Strands | 0.005"/0.12mm | Bare Copper |
| % Coverage | 93 nom | |
| Jacket | 0.232"/5.90±0.1mm | PVC (UL CMP) |
| Power Wire Conductor | 2 - 18 AWG 7×0.0152"/7×0.386mm | Bare Copper |
| Power wire Diameter of insulation | 0.060"/1.52mm | PVC (UL CMP) |
| Power Wire Color Code | Red,Black | |
| Jacket | 0.150"/3.8±0.1mm | PVC (UL CMP) |
| * 1 Pair of wire twisted | ||
| Application | For Use in Intermediate CCTV | Run Lengths |
| Limited Length | Typical run length up to | 1000 feet |
| Electrical Characteristics: | ||
| Capacitance | 52±1 pF/m | 16.0pF/FT |
| Impedance | 75±3 Ω | |
| Resistance Coax Conductor | 34.4 Ohms/KM | 10.5 Ohms/KFT |
| Resistance Power Conductor | 21.7 Ohms/KM | 6.6 Ohms/KFT |
| Return loss | between 5 and 1000MHz | > 22dB |
| Velocity of Propagation | 0.85 | |
| Shielding Effectiveness(>dB) | 70 | |
| Max Operating Voltage(KVMS) | 3 | |
| Operating Temp Range (PVC) | -20 ℃ to 75℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
|
Frequency (MHZ) |
Max Attenuation (dB/100ft) |
Max Attenuation (dB/100m) |
| 1 | 0.32 | 1.05 |
| 10 | 0.92 | 3.02 |
| 50 | 1.60 | 5.25 |
| 100 | 2.40 | 7.87 |
| 200 | 3.40 | 11.15 |
| 400 | 4.80 | 15.75 |
| 700 | 6.50 | 21.33 |
| 900 | 7.7 | 25.26 |
| 1000 | 8.1 | 26.57 |
| Order Informations: | ||
| Marking |
KINGTONE KT0725 RG59/U 95% Braiding+2C18AWG (UL)C(UL) 75C TYPE CMP XXX MM/DD/YYYY RoHS COMPLIANT ****FT |
|
| Inner Package | 500FT/PULL BOX, 1000FT/Wooden Spool | |
| Outer Package | Carton, Pallet (or Per customer's request) | |
| Delivery time | Normally 20-25 days after received the deposit. | |
| More informations | please contact with us. | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and KINGTONE.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
