Payment & Shipping Terms:
|Conductor:||Stranded OFC||Insulation:||CM Rated PVC|
|Ripcord:||Cotton Wire||Jacket:||CM Rated PVC|
|Color:||Blue, Yellow, Purple||Package:||305M, 1000FT, Pull Box, Pallet|
outdoor speaker cable,
shielded speaker cable

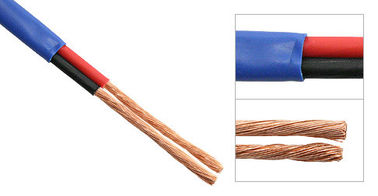

CM CL2 Audio Speaker Cable 12 AWG 4C OFC Conductor with Ultimate Sound Quality
Speaker wire is used to make the electrical connection between loudspeakers and audio amplifiers.
Modern speaker wire consists of two or more electrical conductors individually insulated by plastic
(such as PVC, PE or Teflon) or, less commonly, rubber. The two wires are electrically identical,
but are marked to identify the correct audio signal polarity. Most commonly, speaker wire
comes in the form of zip cord.
The effect of speaker wire upon the signal it carries has been a much-debated topic in the
audiophile and high fidelity worlds. The accuracy of many advertising claims on these points
has been disputed by expert engineers who emphasize that simple electrical resistance is
by far the most important characteristic of speaker wire.
ZION using best raw material and best worker to produce Speaker wire to meet high
performance in practical application.Because of good managing methods, ZION’S
price of Speaker wire is not high although our quality is really high.
|CM CL2 Audio Speaker Cable 12 AWG 4C OFC Conductor with Ultimate Sound Quality|
|Conductor Stranded||12AWG (19×25)||Oxygen Free Copper|
|No. of Conductor||4|
|Nom. Insulation Thickness||0.010"/0.25mm||PVC CM|
|Nom. Jacket Thickness||0.017"/0.43mm||PVC CM|
|Overall Cable Diameter||0.320"/8.13mm||PVC CM|
|Approximate Cable Weight||69 Lbs/1000ft|
|Flame Rating||UL 1666 Riser Flame Test|
|Nom. D.C. R. Resistance @ 20°:||2.7 ohms per 1000ft|
|Temperature Rating||-20° C to 60° C|
|Operating Voltage||150 V RMS Max|
|31 pF/ft Nom.|
|Insulation Colors||Black, Red, White, Green|
|Jacket Colors||Grey, Black, Brown, White|
ZION KT1607 AUDIO CABLE 12AWG 4C
Stranded OFC PVC CM (UL) XXX M/FT
|Package||305M, 1000FT, Pull Box, Pallet|
|Delivery time||Normally 20 days after received the deposit.|
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
