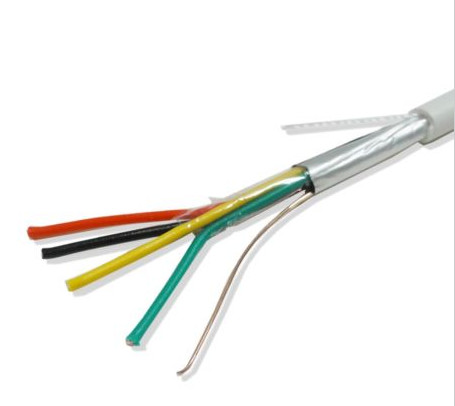

Shielded 0.22mm2 Stranded Conductor Alarm Cable for Indoor Remote Control
Quick Detail:
- Security Alarm Cable
- Stranded Copper Conductor
- Stranded Copper Clad Aluminum Conductor
- High Quality PVC Insulation
- High Quality PVC ( RoHS) Flame Retardant Jacket, White
- 100M Paper Reel, 300M Wooden Spool, Carton
- Ideal for Indoor Remote Control of Security
- ISO, CE, UL, RoHS
Description:
Alarm Cable use conductor of Stranded Copper Copper Clad Aluminum, mainly packed in 100M.
Alarm Cable jacket color normally is white. Unlike audio/visual or networking cables,
most alarm wire technology has not changed in decades even with advances in alarm systems
and their associated detection devices. This being said,the wiring that goes into an alarm
system is as critical as any wire can be. Fire and security alarm cable provides the basic
framework upon which all of a building's asset protection is based.
ZION using best raw material and best worker to produce shielded and unshielded Alarm Cable
to meet high performance in practical application.
Applications:
Wiring Burglar & Security alarms, public address systems,intercoms,telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.
| Shielded 0.22mm2 Stranded Conductor Security Alarm Cable for Indoor Remote Control |
| |
| Construction |
| Conductor |
7 x 0.20mm TC/BC/CCA/TCCA |
| Shielded |
PET/AL-FOIL |
| Insulation |
0.95mm PVC |
| Drain Wire |
TC/BC/CCA/TCCA |
| Rip Cord |
Cotton Wire |
| Outer jacket |
PVC(RoHs) flame retardant |
| |
| Structure of single shielded 0.22mm2 soft alarm cable |
| Serial Number |
Section |
Specification |
Qverall Diamete (mm)
|
| A-01 |
2*0.22mm2 |
2*7/0.20 |
3.10 |
| A-02 |
4*0.22mm2 |
4*7/0.20 |
3.60 |
| A-03 |
6*0.22mm2 |
6*7/0.20 |
4.20 |
| A-04 |
8*0.22mm2 |
8*7/0.20 |
4.60 |
| A-05 |
10*0.22mm2 |
10*7/0.20 |
5.30 |
| A-06 |
12*0.22mm2 |
12*7/0.20 |
5.50 |
| A-07 |
14*0.22mm2 |
14*7/0.20 |
5.90 |
| A-08 |
20*0.22mm2 |
20*7/0.20 |
6.90 |
| A-09 |
30*0.22mm2 |
30*7/0.20 |
8.50 |
| A-10 |
40*0.22mm2 |
40*7/0.20 |
10.10 |
| A-11 |
2*0.5+2*0.22mm2 |
2*16/0.20+2*7/0.20 |
4.00 |
| A-12 |
2*0.5+4*0.22mm2 |
2*16/0.20+4*7/0.20 |
4.60 |
| A-13 |
2*0.5+6*0.22mm2 |
2*16/0.20+6*7/0.20 |
5.00 |
| A-14 |
2*0.5+8*0.22mm2 |
2*16/0.20+8*7/0.20 |
5.80 |
| A-15 |
2*0.5+10*0.22mm2 |
2*16/0.20+10*7/0.20 |
6.10 |
| A-16 |
2*0.5+12*0.22mm2 |
2*16/0.20+12*7/0.20 |
6.40 |
| A-17 |
2*0.75+2*0.22mm2 |
2*24/0.20+2*7/0.20 |
4.30 |
| A-18 |
2*0.75+4*0.22mm2 |
2*24/0.20+4*7/0.20 |
5.00 |
| A-19 |
2*0.75+6*0.22mm2 |
2*24/0.20+6*7/0.20 |
5.40 |
| A-20 |
2*0.75+8*0.22mm2 |
2*24/0.20+8*7/0.20 |
6.30 |
| |
| Order Informations: |
| Marking |
ZION 0.22mm2 Shielded Alarm Cable XXX M
|
| Inner Package |
100M Paper Reel, 300M Wooden Spool (or Per customer's request)
|
| Outer Package |
Carton, Color Box, Pallet (or Per customer's request) |
| Delivery time |
Normally 20 days after received the deposit. |
|
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
