Aluminum Mylar Foil Shielded Security Alarm Cable 1 Pair 1.00mm2 TC Conductor

Good quality CATV Coaxial Cable for sales
Good quality CATV Coaxial Cable for sales
We started cooperation from 2013 until now. We are vey satisfied with stable quality cables with reasonable price offer. ZION is a very good partner!

—— Theo

I am impressed by quickly, professionally answer each time and very happy with their stable quality products!

—— Alexander

We have received the goods. They are of good quality and we will do more business with you in the future!

—— Nissim

I'm Online Chat Now

Aluminum Mylar Foil Shielded Security Alarm Cable 1 Pair 1.00mm2 TC Conductor

China Aluminum Mylar Foil Shielded Security Alarm Cable 1 Pair 1.00mm2 TC Conductor supplier
Aluminum Mylar Foil Shielded Security Alarm Cable 1 Pair 1.00mm2 TC Conductor supplier Aluminum Mylar Foil Shielded Security Alarm Cable 1 Pair 1.00mm2 TC Conductor supplier

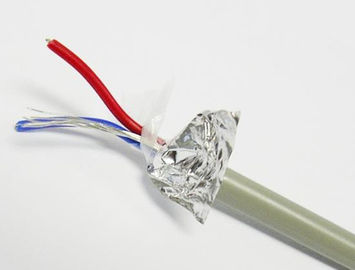

Large Image :  Aluminum Mylar Foil Shielded Security Alarm Cable 1 Pair 1.00mm2 TC Conductor

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Mylar Screended Cable 1 Pair 1.00mm2

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 100M Roll, 300M / 500M Wooden Spool, Carton
Delivery Time: Normally 20 days
Payment Terms: T/T, L/C
Supply Ability: 3000 KM / Month
Contact Now
Detailed Product Description
Conductor: Stranded Tinned Copper Insulation: Mylar PVC
Drain Wire: Stranded Tinned Copper Rip Cord: Yes
Jacket: Mylar PVC Color: Gray
Package: 100M Roll, 300M / 500M Wooden Spool, Carton
High Light:

shielded Alarm Cable

,

screened alarm cable





Aluminum Mylar Foil Shielded Security Alarm Cable 1 Pair 1.00mm2 TC Conductor





Quick Detail:

  • 1 Pair Mylar Screened Cable
  • 12 Stranded Tinned Copper Conductor
  • 16 Stranded Tinned Copper Conductor
  • 32 Stranded Tinned Copper Conductor
  • Stranded Tinned Copper Drain Wire
  • PVC ( RoHS) Flame Retardant, Gray
  • 100M Roll, 300M / 500M Wooden Spool, Carton
  • ISO, CE, RoHS, UL



Description:



Myalar Screened Cable use conductor of  Stranded Tinned Copper conductor, mainly in 100M Roll.

Myalar Screened cable jacket color normally is gray. Unlike audio/visual or networking cables,
most alarm wire technology has not changed in decades even with advances in alarm systems
and their associated detection devices. This being said,the wiring that goes into an alarm
system is as critical as any wire can be. Myalar Screened cable provides the basic
framework upon which all of a building's asset protection is based.

ZION using best raw material and best worker to produce Myalar Screened Cable to meet high performance in practical application.





Applications:



Wiring Burglar & Security alarms, public address systems,intercoms,telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.



Aluminum Mylar Foil Shielded Security Alarm Cable 1 Pair 1.00mm2 TC Conductor


0.40mm2  Construction
Conductor 12 x 0.20mm  TC/BC
Pairs 1
Insulation 1.50mm PVC
Drain Wire 12 x 0.20mm  TC/BC
Outer jacket Overall Diameter (mm) 4.8 ± 0.1 mm
Thickness (mm) 0.80 mm
Raw Material PVC(RoHs) flame retardant
Marking ZION Mylar Screened Cable 1 Pair 0.40mm2 Stranded Gray

0.50mm2  Construction
Conductor 16 x 0.20mm  TC/BC
Pairs 1
Insulation 1.65mm PVC
Drain Wire 16 x 0.20mm  TC/BC
Outer jacket Overall Diameter (mm) 5.5 ± 0.1 mm
Thickness (mm) 0.80 mm
Raw Material PVC(RoHs) flame retardant
Marking ZION Mylar Screened Cable 1 Pair 0.50mm2 Stranded Gray

1.00mm2  Construction
Conductor 32 x 0.20mm  TC/BC
Pairs 1
Insulation 2.20mm PVC
Drain Wire 32 x 0.20mm  TC/BC
Rip Cord Cotton Wire
Outer jacket Overall Diameter (mm) 6.2 ± 0.1 mm
Thickness (mm) 0.80 mm
Raw Material PVC(RoHs) flame retardant
Marking ZION Mylar Screened Cable 1 Pair 1.00mm2 Stranded Gray

Order Informations:
  Inner Package 100M/Roll, 300M or 500M/Wooden Spool (or Per customer's request)
  Outer Package Carton, Pallet (or Per customer's request)
  Delivery time Normally 20 days after received the deposit.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and ZION.

3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.

4, We can quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery



Aluminum Mylar Foil Shielded Security Alarm Cable 1 Pair 1.00mm2 TC Conductor
