Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bare Copper | Insulation: | Foamed PE |
|---|---|---|---|
| 1st Shield: | Bonded AL-Foil | 2nd Shield: | CCA Braiding |
| Jacket: | CM Rated PVC | Color: | Black, White |
| Package: | 500FT, 1000FT, Plastic / Wooden Spool, Carton | ||
| High Light: | outdoor coaxial cable,hd coaxial cable |
||

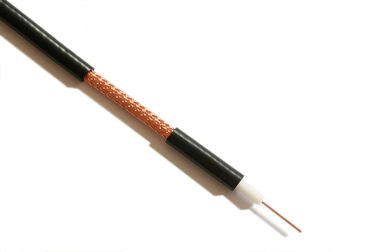

20 AWG Bare Copper RG59 CCTV Coaxial Cable 95% CCA Braiding CM Rated PVC
Quick Detail:
Description:
RG59 CCTV Coaxial Cable 20AWG Bare Copper Conductor 95% CCA Braiding CM Rated PVC
RG59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by ZION) is perfect
for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.
ZION using best raw material and best worker to produce RG59/U to meet high performance in
practical application. RG59/U is packed in 500FT/1000FT Plastic/Wooden Spool, and will be layed on
pallet to protect the spool and easier carry.Because of good managing methods,
ZION’S price of RG59/U is not high although our quality is really high.
Applications:
Suitable for Signal Transmission
■ CCTV
■ Local Area Network
■ Digital Video
■ Monitor / VDT Display
■ Security Camera
Specifications:
| RG59 CCTV Coaxial Cable 20AWG Bare Copper 95% CCA Braiding CM Rated PVC | ||
| Construction Parameters: | ||
| Inner Conductor | 0.032"/0.81mm/20AWG | Bare Copper |
| Dielectric | 0.144"/3.66±0.05mm | Foamed Polyethylene |
| First Shield | Bonded Aluminum Foil | |
| Second Shield | Nom. 0.161"/4.10mm | Braiding |
| Strands | 0.005"/0.12mm | Copper Clad Aluminum |
| % Coverage | 95 nom | |
| Jacket | 0.236"/6.00±0.1mm | PVC (UL CM) |
| Application | For Use in Intermediate CCTV | Run Lengths |
| Limited Length | Typical run length up to | 600 feet |
| Electrical Characteristics: | ||
| Capacitance | 52±1 pF/m | 17±0.35 pF/ft |
| Impedance | 75±3 Ω | |
| Resistance | 35.73 Ohms/KM | 11.71 Ohms/KFT |
| Return loss | between 5 and 1000MHz | > 22dB |
| Velocity of Propagation | 0.85 | |
| Shielding Effectiveness(>dB) | 70 | |
| Max Operating Voltage(KVMS) | 3 | |
| Operating Temp Range (PVC) | -20 ℃ to 60℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
| Frequency (MHZ) |
Max Attenuation (dB/100ft) |
Max Attenuation (dB/100m) |
| 5 | 0.92 | 2.82 |
| 55 | 2.21 | 6.73 |
| 211 | 4.09 | 12.47 |
| 400 | 5.49 | 16.73 |
| 550 | 6.40 | 19.52 |
| 750 | 7.50 | 22.87 |
| 870 | 8.09 | 24.67 |
| 1000 | 8.73 | 26.64 |
| 1450 | 10.60 | 32.32 |
| 1750 | 11.78 | 35.92 |
| 2150 | 13.05 | 39.80 |
| Order Informations: | ||
| Marking |
ZION RG59 BC 95% CCA COAXIAL CABLE ETL XXXX RoHS CM 60C XXX FT/M |
|
| Package | 500FT, 1000FT, Plastic / Wooden Spool, Carton | |
| Delivery time | Normally 25 days after received the deposit. | |
| More informations | Please contact with us. | |
