Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bare Copper | Dielectric: | Foamed PE |
|---|---|---|---|
| 1st Shield: | Bonded AL-Foil | 2nd Shield: | Tinned Copper Braid |
| Jacket: | PE | Color: | Black |
| Package: | 500M, 1000M, Wooden Spool, Pallet | ||
| High Light: | outdoor coaxial cable,hd coaxial cable |
||
Quick Detail:
Description:
KT0504 Low Loss 300 1.78mm Bare Copper Conductor with PE Jacket for Antenna Connection
is a low loss, braided coaxial cable offers similar performance compared to corrugated
copper products but with higher flexibility and simplified connectorization.
Can be used in almost any application where handling characteristics, improved shielding

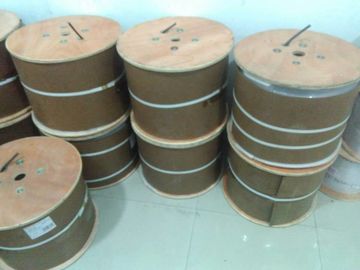

and low loss is required. LLC 300 is packed in 500M/1000M Wooden Spool,
and will be layed on pallet to protect the spool and easier carry.
Because of good managing methods, ZION’S price of 300 is not high although our quality is really high.
Applications:
Low loss at high frequency for radiocommunication and amateur radio.
| KT0504 1.78mm Bare Copper Conductor Low Loss 300 with PE Jacket for Antenna Connection | ||
| Construction Parameters: | ||
| Inner Conductor | 1.78mm | Bare Copper |
| Dielectric | 4.83mm | Foamed PE |
| First Shield | Bonded AL-Foil | |
| Second Shield | Nom. 5.72mm | Tinned Copper Braid |
| Jacket | 7.62mm | PE |
| Electrical Characteristics: | ||
| Capacitance | 79.1 pF/m | |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.85 | |
| Shielding Effectiveness(>dB) | 90 | |
| Min.Bend Radius(mm) | 38 | |
| Operating Temp Range (PVC) | -25 ℃ to 70℃ | |
| Operating Temp Range (PE) | -40 ℃ to 80℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Attenuation (dB/100m) | Avg.Power(KW) |
| 30 | 3.5 | 1.78 |
| 50 | 4.5 | 1.38 |
| 150 | 7.9 | 0.79 |
| 220 | 9.6 | 0.65 |
| 450 | 13.8 | 0.45 |
| 900 | 19.9 | 0.31 |
| 1500 | 26.0 | 0.24 |
| 1800 | 28.7 | 0.22 |
| 2000 | 30.3 | 0.21 |
| 2500 | 34.2 | 0.18 |
| 5800 | 54.3 | 0.11 |
| Order Informations: | ||
| Marking | ZION LLC 300 COAXIAL CABLE xx M | |
| Inner Package | 500M or 1000M Wooden Spool | |
| Outer Package | Pallet (or Per customer's request) | |
| Delivery time | Normally 25 days after received the deposit. | |
| More informations | please contact with us. | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
