1.12mm Bare Copper Conductor with TC Wire Braid PE Jacket Low Loss 200 for GPS

China 1.12mm Bare Copper Conductor with TC Wire Braid PE Jacket Low Loss 200 for GPS supplier
1.12mm Bare Copper Conductor with TC Wire Braid PE Jacket Low Loss 200 for GPS supplier 1.12mm Bare Copper Conductor with TC Wire Braid PE Jacket Low Loss 200 for GPS supplier 1.12mm Bare Copper Conductor with TC Wire Braid PE Jacket Low Loss 200 for GPS supplier

Large Image :  1.12mm Bare Copper Conductor with TC Wire Braid PE Jacket Low Loss 200 for GPS

Product Details:

Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Certification: UL, ETL, CE, CPR, RoHS
Model Number: Low Loss 200 Coaxial Cable

Payment & Shipping Terms:

Minimum Order Quantity: 10 KM
Packaging Details: 500M or 1000M, Wooden Spool, Pallet
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 500M / Month
Contact Now
Detailed Product Description
Conductor: Bare Copper Dielectric: Foamed PE
1st Shield: Bonded AL-Foil 2nd Shield: Tinned Copper Braid
Jacket: PE Color: Black
Package: 500M, 1000M, Wooden Spool, Pallet
High Light:

digital coaxial cable

,

hd coaxial cable



1.12mm Bare Copper Conductor with TC Wire Braid PE Jacket Low Loss 200 for GPS





Quick Detail:

  • Low Loss 200
  • 50 Ohm Coaxial Cable
  • 1.12mm Bare Copper
  • Bonded Aluminum Foil
  • Tinned Copper Braiding
  • PE Jacket Black
  • Designed for Flexibility, Low Loss, RF Shielding
  • 500M, 1000M, Wooden Spool, Pallet
  • MOQ: 10KM





Description:



KT0502 Low Loss 200, 1.12mm Copper Conductor, TC Braid, 4.95mm PE Jacket Black

is a low loss, braided coaxial cable offers similar performance compared to corrugated

copper products but with higher flexibility and simplified connectorization.

Can be used in almost any application where handling characteristics, improved shielding

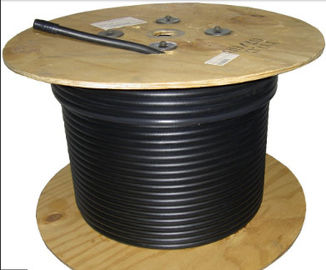

and low loss is required. LLC 200 is packed in 500M/1000M Wooden Spool,

and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, ZION’S price of 200 is not high although our quality is really high.





Applications:



Low loss at high frequency for radiocommunication and amateur radio.



KT0502 Low Loss 200 1.12mm Bare Copper Conductor with TC Wire Braid PE Jacket
Construction Parameters:
  Inner Conductor 1.12mm      Bare Copper
  Dielectric 2.95mm            Foamed PE
  First Shield                Bonded AL-Foil
  Second Shield Nom. 3.66mm        Tinned Copper Braid
  Jacket 4.95mm                        PE

Electrical Characteristics:
  Capacitance 80.4 pF/m
  Impedance 50 Ω
  Velocity of Propagation  0.83
  Shielding Effectiveness(>dB) 90
  Min.Bend Radius(mm) 25
  Operating Temp Range  (PVC) -25 ℃ to 70℃
  Operating Temp Range  (PE) -40 ℃ to 80℃
  RoHS YES

Attenuation(20℃):
Frequency (MHZ)             Attenuation (dB/100m) Avg.Power(KW)
30 5.8 0.91
50 7.5 0.70
150 13.1 0.40
220 15.9 0.33
450 22.8 0.23
900 32.6 0.16
1500 42.4 0.12
1800 46.6 0.11
2000 49.3 0.11
2500 60.2 0.10
5800 86.5 0.06

Order Informations:
  Marking ZION LLC 200 COAXIAL CABLE  xxx M
  Inner Package 500M or 1000M / Wooden Spool
  Outer Package Pallet (or Per customer's request)
  Delivery time Normally 25 days after received the deposit.
  More informations  please contact with us.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and ZION.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery



1.12mm Bare Copper Conductor with TC Wire Braid PE Jacket Low Loss 200 for GPS
