Product Details:
Payment & Shipping Terms:
|
Inner Conductor: | Smooth Copper Tube | Dielectric: | Foam PE |
---|---|---|---|
Outer Conductor: | Corrugated Aluminum Tube | Jacket: | PE Black |
Package: | 500M/Wooden Drum |
Quick Detail:
Description:
7/8" RF Coaxial Cable Smooth Copper Tube with Corrugated AluminumTube PE Jacket
7/8" RF Coaxial Cable Smooth Copper Tube with Corrugated Aluminum Tube PE Jacket | ||
Construction Parameters: | ||
Inner Conductor | 9.00mm | Smooth Copper Tube |
Dielectric | 22.50mm | Foam PE |
Outer Conductor | 24.90mm | Corrugated Aluminum Tube |
Jacket | 27.70mm | PE Black |
Electrical Characteristics: | ||
Capacitance | 76 pF/m | |
Impedance | 50 Ω | |
Velocity of Propagation | 88% | |
Peak Power Rating | 91 KW | |
Jacket Spark | 8.0 KV | |
Operating Temperature Range | -55 ℃ to 80℃ | |
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation (dB/100m) | Average Power (KW) |
100 | 1.17 | 8.62 |
200 | 1.69 | 5.99 |
450 | 2.60 | 3.88 |
800 | 3.56 | 2.83 |
1000 | 4.03 | 2.50 |
Order Informations: | ||
Marking | ZION 7/8" RF AL Coaxial Cable XXX M | |

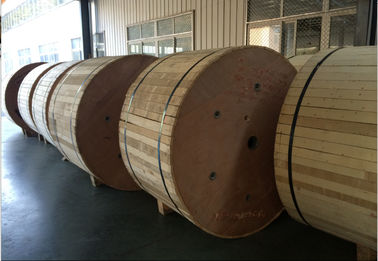

Inner Package | 500M/Wooden Drum | |
Outer Package | Pallet (or Per customer's request) | |
Delivery time | Normally 25 days after received the deposit. | |
More informations | please contact with us. |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
