Security Alarm Cable 0.20mm2 Shielded Solid CU / CCA / TCCA Conductor in 100M

China Security Alarm Cable 0.20mm2 Shielded Solid CU / CCA / TCCA Conductor in 100M supplier
Security Alarm Cable 0.20mm2 Shielded Solid CU / CCA / TCCA Conductor in 100M supplier Security Alarm Cable 0.20mm2 Shielded Solid CU / CCA / TCCA Conductor in 100M supplier Security Alarm Cable 0.20mm2 Shielded Solid CU / CCA / TCCA Conductor in 100M supplier Security Alarm Cable 0.20mm2 Shielded Solid CU / CCA / TCCA Conductor in 100M supplier

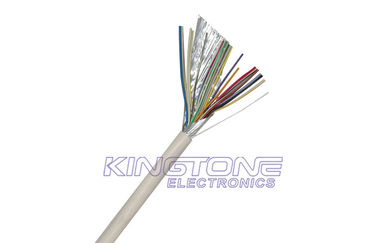

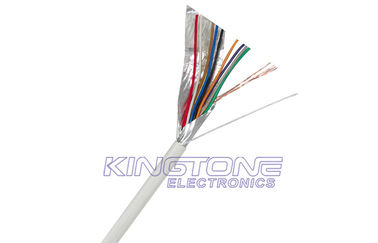

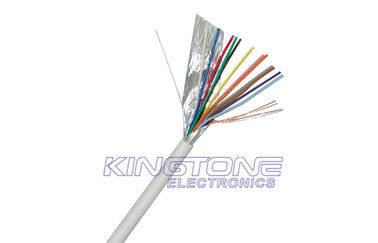

Large Image :  Security Alarm Cable 0.20mm2 Shielded Solid CU / CCA / TCCA Conductor in 100M

Product Details:

Place of Origin: China
Brand Name: KINGTONE OR OEM
Certification: CE, RoHS, UL
Model Number: Security Alarm Cable 0.20mm2 Shielded
Contact Now
Detailed Product Description
Minimum Order Quantity: 30 KM Packaging Details: 100M Paper Reel, 300M Wooden Spool, Carton
Delivery Time: Normally 15 Days Payment Terms: T/T, L/C
Supply Ability: 50*20’GP / Month Conductor: Bare Copper
Insulation: PVC Shield: PET / AL-Foil
Drain Wire: Yes Rip Cord: Yes
Jacket: PVC Color: White
Package: 100M Paper Reel, 300M Wooden Spool, Carton
High Light:

alarm system cable

,

screened alarm cable





Security Alarm Cable 0.20mm2 Shielded Solid CU / CCA / TCCA Conductor in 100M





Quick Detail:



  • Security Alarm Cable
  • Solid CU / CCA / TCCA Conductor
  • PVC Insulation
  • PVC ( RoHS) Flame Retardant, White

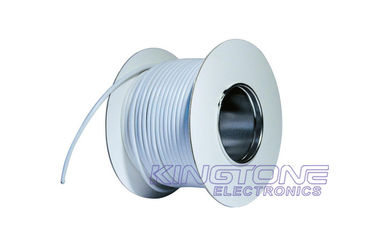

  • 100M Paper Reel, 300M Wooden Spool, Carton
  • Installing Surveillance Cameras in CCTV Systems
  • ISO, CE, UL, RoHS



Description:



Alarm Cable use conductor of  Stranded or Solid CU/CCA/TCCA conductor,mainly packed in 100m
Alarm cable jacket color normally is white. Unlike audio/visual or networking cables,
most alarm wire technology has not changed in decades even with advances in alarm systems
and their associated detection devices. This being said,the wiring that goes into an alarm
system is as critical as any wire can be. Fire and security alarm cable provides the basic
framework upon which all of a building's asset protection is based.

KINGTONE using best raw material and best worker to produce shielded and unshielded Alarm Cable
to meet high performance in practical application.







Applications:



Wiring Burglar & Security alarms, public address systems,intercoms,telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.



KT1300 Alarm Cable Solid  CU / CCA / TCCA Conductor 0.20mm2 Shielded 100M White

Construction
Conductor 0.50mm TC/BC/CCA/TCCA
Shielded AL/PE FOIL
Insulation  0.95mm PVC
Drain Wire TC/BC/CCA/TCCA
Rip Cord Cotton Wire
Outer jacket PVC(RoHs) flame retardant

Structure of single shielded 0.2mm2 soft alarm cable
Serial No. Section Specification Qverall Diameter(mm)
KT1300-01 2*0.2mm2 2*1/0.50 3.1
KT1300-02 4*0.2mm2 4*1/0.50 3.6
KT1300-03 6*0.2mm2 6*1/0.50 4.3
KT1300-04 8*0.2mm2 8*1/0.50 4.6
KT1300-05 10*0.2mm2 10*1/0.50 5.4
KT1300-06 12*0.2mm2 12*1/0.50 5.6
KT1300-07 16*0.2mm2 16*1/0.50 6.1
KT1300-08 24*0.2mm2 24*1/0.50 7.4

Order Informations:
  Marking KINGTONE 0.2mm2 Shielded Alarm Cable XXX M  (or Per customer's request)
  Inner Package 100m/Roll, 100m/Spool,305m/Spool (or Per customer's request)
  Outer Package Carton, Color Box, Pallet (or Per customer's request)
  Delivery time Normally 15 days after received the deposit.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and KINGTONE.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery
