GYFTY Fiber Optic Networking Cable , Stranded Loose Tube with Waterproof Outdoor PE

China GYFTY Fiber Optic Networking Cable , Stranded Loose Tube with Waterproof Outdoor PE supplier

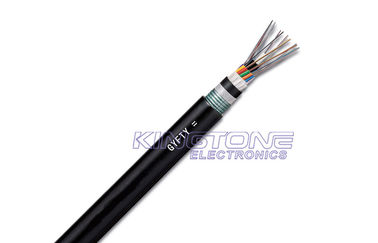

Large Image :  GYFTY Fiber Optic Networking Cable , Stranded Loose Tube with Waterproof Outdoor PE

Product Details:

Place of Origin: China
Brand Name: KINGTONE OR OEM
Certification: CE,RoHS, VDE,UL,CUL,LPCB
Model Number: GYFTY Fiber Optic Cable
Contact Now
Detailed Product Description
Minimum Order Quantity: 3OKM Packaging Details: 500FT/1000FT Plastic/Wooden Spool
Delivery Time: Normally 15 Days Payment Terms: T/T,L/C
Supply Ability: 50*20’GP/Month
High Light:

heat resistance cable

,

fiber optic ethernet cable





GYFTY Fiber Optic Networking Cable , Stranded Loose Tube with Waterproof Outdoor PE





Quick Detail:



  •  GYFTY Fiber Optic Cable
  •  G.652D or G.657A
  •  Cable Diameter 2~36 Core: 10.6mm
  •  Tensile Strength Long/Short Term: 400/1000N
  •  Crush Resistance Long/Short Term: 300/1000 N/100m
  •  Bending Radius Static/Dynamic: 10D/20D
  •  GYFTY Cable Complies with Standard YD/T 901-2001as well as IEC 60794-1.





Description:



The fibers,  250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.





Applications:

  • Adopted to Outdoor distribution.
  • Suitable for aerial duct and buried method.
  • Long distance and local area network communication.





KT3011 GYFTY Outdoor Fiber Optic Cable Stranded Loose

Tube Cable with Non-Metallic Central Strength Member PE Jacket

Description&Standards :

The fibers, 250μm are positioned in a loose tube made of a high modulus plastic. The tubes are filled

with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a

non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a

compact

and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the

cable

is completed with a PE sheath.

GYFTY cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Characteristics:
Good mechanical and temperature performance;
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection fiber;
Crush resistance and flexibility;
The following measures are taken to ensure the cable watertight:
(1)Single Fiber Reinforced Plastic as the central strength member;
(2)Loose tube filling compound;
(3)100% cable core filling;

Technical Parameters:
Cable Type Cable Diameter
(mm)
Cable Weight
    (kg/km)
Tensile Strength
Long/Short Term
         (N)
Crush Resistance
Long/Short Term
(N/100mm)

Bending

Radius
Static/

Dynamic
(mm)

GYFTY-2~6 10.6 88 400/1000 300/1000 10D/20D
GYFTY-8~12 10.6 88 400/1000 300/1000 10D/20D
GYFTY-14~18 10.6 88 400/1000 300/1000 10D/20D
GYFTY -20~24 10.6 88 400/1000 300/1000 10D/20D
GYFTY-26~30 10.6 88 400/1000 300/1000 10D/20D
GYFTY-32~36 10.6 88 400/1000 300/1000 10D/20D

 Optical fiber Characteristics:
       G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20℃)
@850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36
 dB/km
≤0.40
dB/km

@1550nm ≤0.22
 dB/km
≤0.23
dB/km

Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
  @1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015 NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
Storage/Operating Temperature : -40℃ to + 70℃
Order Informations:
  Marking

KINGTONE KT3011 GYFTY XXX M/FT (or Per customer's

request)

  Package

1000M/2000M/3000M, Drum/Pallet (or Per customer's

request)

  Delivery time Normally 15 days after received the deposit.





Competitive Advantage:



1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A,Incoming material inspected by QC.

B,Manufacturing Process Control

  A: Manufacturing procedure

  B: Workers trained daily/weekly/monthly

  C: Work instructions manual at each work station

  D:5S system implemented

  E: Machine maintenance procedure

C, Quality Control and Final Inspection

  The QC staff will check the material, process product and final product according to the specification or test procedure.

2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE

3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
