Product Details:
|
| Minimum Order Quantity: | 3OKM | Packaging Details: | 500FT/1000FT Plastic/Wooden Spool |
|---|---|---|---|
| Delivery Time: | Normally 15 Days | Payment Terms: | T/T,L/C |
| Supply Ability: | 50*20’GP/Month | ||
| High Light: | fiber optic ethernet cable,fiber optical cable |
||

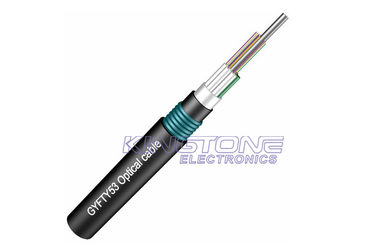

13 core 6mm JET Fiber Optic Network Cable , Outdoor communication Network Cable G.657A
Quick Detail:
Description:
The fibers,250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE/LSZH sheath.
Applications:
|
KT3010 JET Outdoor Fiber Optic Cable G.652D or G.657A 2~12 Core PE Jacket |
||||||
| Description: | ||||||
|
The fibers,250μm either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE/LSZH sheath.
|
||||||
| Characteristics: | ||||||
| Non-mental design can prevent the cable from radio interference and magnetic wave interference; | ||||||
| Specially designed compact structure is good at preventing loose tubes from shrinking; | ||||||
| Aramid yarn ensures good performance of tensile strength; | ||||||
| Loose tube filling compound ensure good moisture resistance performance; | ||||||
| Good flexibility; | ||||||
|
High dense fiber packed, small diameter and light weight;it's the better option for blowing installation process. |
||||||
| Technical Parameters: | ||||||
| Cable Type |
Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush
Resistance
Short Term |
Bending
Radius
Dynamic |
|
| JET 2~12 | 6 | 40 | 60/150 | 300/1000 | 10D/20D | |
| Optical fiber Characteristics: | ||||||
| G.652 | G.655 | 50/125μm | 62.5/125μm | |||
|
Attenuation (+20℃) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||||
| @1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
||||
| @1550nm |
≤0.22 dB/km |
≤0.23 dB/km |
||||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015NA | ||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
| Storage/Operating Temperature : -40℃ to + 70℃ | ||||||
| Order Informations: | ||||||
| Marking |
KINGTONE KT3010 JET XXX M/FT (or Per customer's request) |
|||||
| Package |
1000M/2000M/3000M, Drum/Pallet (or Per customer's request) |
|||||
| Delivery time | Normally 15 days after received the deposit. | |||||
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A,Incoming material inspected by QC.
B,Manufacturing Process Control
A: Manufacturing procedure
B: Workers trained daily/weekly/monthly
C: Work instructions manual at each work station
D:5S system implemented
E: Machine maintenance procedure
C, Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE
3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
