Product Details:
|
| Minimum Order Quantity: | 3OKM | Packaging Details: | 500FT/1000FT Plastic/Wooden Spool |
|---|---|---|---|
| Delivery Time: | Normally 15 Days | Payment Terms: | T/T,L/C |
| Supply Ability: | 50*20’GP/Month | ||
| High Light: | fiber optic ethernet cable,fiber optical cable |
||

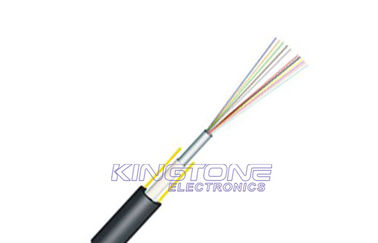

GYFXY Fiber Optic Networking Cable 12 Cores PE Jacket G.652D or G.657A
Quick Detail:
Description:

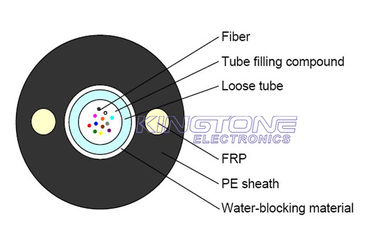

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.
Applications:
| KT3002 GYFXY Outdoor Fiber Optic Cable G.652D or G.657A 2~12 Core PE Jacket |
||||||
| Description&Standards : | ||||||
|
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. Over the tube. water blocking material is applied to keep the cable watertight. Two parallel Fiber.Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.
|
||||||
| GYFXY cable complies with Standard YD/T 769-2003. | ||||||
| Characteristics: | ||||||
| Good mechanical and temperature performance; | ||||||
| High strength loose tube that is hydrolysis resistant; | ||||||
| Special tube filling compound ensure a critical protection of fiber; | ||||||
| Two parallel FRPs ensure tensile strength; | ||||||
| PE sheath protects cable from ultraviolet radiation; | ||||||
| Small diameter, light weight and friendly installation; | ||||||
| Long delivery length. | ||||||
| Technical Parameters: | ||||||
| Cable Type | Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
|
| GYFXY -2~12 | 10.2 | 100 | 400/1000 | 300/1000 | 10D/20D | |
| Optical fiber Characteristics: | ||||||
| G.652 | G.655 | 50/125μm | 62.5/125μm | |||
| Attenuation (+20℃) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||||
| @1310nm | ≤0.36 dB/km |
≤0.40 dB/km |
||||
| @1550nm | ≤0.22 dB/km |
≤0.23 dB/km |
||||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015NA | ||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
| Storage/Operating Temperature : -40℃ to + 70℃ | ||||||
| Order Informations: | ||||||
| Marking | KINGTONE KT3002 GYFXY XXX M/FT (or Per customer's request) | |||||
| Package | 1000M/2000M/3000M, Drum/Pallet (or Per customer's request) | |||||
| Delivery time | Normally 15 days after received the deposit. | |||||
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A,Incoming material inspected by QC.
B,Manufacturing Process Control
A: Manufacturing procedure
B: Workers trained daily/weekly/monthly
C: Work instructions manual at each work station
D:5S system implemented
E: Machine maintenance procedure
C, Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE
3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
