Product Details:
|
| Minimum Order Quantity: | 3OKM | Packaging Details: | 500FT/1000FT Plastic/Wooden Spool |
|---|---|---|---|
| Delivery Time: | Normally 15 Days | Payment Terms: | T/T,L/C |
| Supply Ability: | 50*20’GP/Month | ||
| High Light: | fiber optic ethernet cable,fiber optical cable |
||
GYXTC8S 13.5 mm 4 Core 5 Core Fiber Optic Cable with IEC 60794-1 Standard , Black
Quick Detail:
Description:
The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A FRP locates in the center of core as a non-metallic strength member. The tubes (and fibers) are stranded around the strength member into a compact and circular cable core. After an Aramid yarn Strengthening layer is applied around the cable core. This part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Applications:
|
KT3006 GYTC8Y Outdoor Fiber Optic Cable G.652D or G.657A 2~60 Core PE Jacket |
||||||
| Description&Standards : | ||||||
|

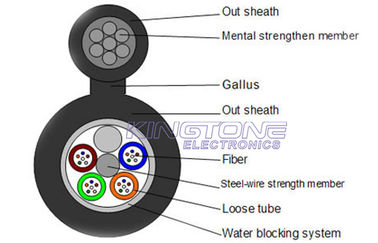

The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A FRP locates in the center of core as a nonmetallic strength member. The tubes (and fibers) are stranded around the strength member into a compact and circular cable core. After an Aramid yarn Strengthening layer is applied around the cable core. This part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
|
||||||
| GYTC8Y-07 Cable complies with Standard YD/T 1155-2001as well as IEC 60794-1 | ||||||
| Characteristics: | ||||||
|
High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost; |
||||||
| Good mechanical and temperature performance; | ||||||
| High strength loose tube that is hydrolysis resistant; | ||||||
| Special tube filling compound ensure a critical protection fiber; | ||||||
| The following measures are taken to ensure the cable watertight: | ||||||
| (1)Steel wire used as the central strength member; | ||||||
| (2)Loose tube filling compound; | ||||||
| (3)100% cable core filling; | ||||||
| Technical Parameters: | ||||||
| Cable Type |
Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush
Resistance
Short Term |
Bending
Radius
Dynamic |
|
| GYTC8Y-2~12 | 9.5*18.3 | 125 | 600/1500 | 300/1000 | 10D/20D | |
| GYTC8Y-14~24 | 9.5*18.3 | 125 | 600/1500 | 300/1000 | 10D/20D | |
| GYTC8Y-26~36 | 9.5*18.3 | 125 | 600/1500 | 300/1000 | 10D/20D | |
| GYTC8Y-38~48 | 9.5*18.3 | 125 | 600/1500 | 300/1000 | 10D/20D | |
| GYTC8Y-50~60 | 9.5*18.3 | 125 | 600/1500 | 300/1000 | 10D/20D | |
| Optical fiber Characteristics: | ||||||
| G.652 | G.655 | 50/125μm | 62.5/125μm | |||
|
Attenuation (+20℃) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||||
| @1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
||||
| @1550nm |
≤0.22 dB/km |
≤0.23 dB/km |
||||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015NA | ||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
| Storage/Operating Temperature : -40℃ to + 60℃ | ||||||
| Order Informations: | ||||||
| Marking |
KINGTONE KT3006 GYTC8Y XXX M/FT (or Per customer's request) |
|||||
| Package |
1000M/2000M/3000M, Drum/Pallet (or Per customer's request) |
|||||
| Delivery time | Normally 15 days after received the deposit. | |||||
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A,Incoming material inspected by QC.
B,Manufacturing Process Control
A: Manufacturing procedure
B: Workers trained daily/weekly/monthly
C: Work instructions manual at each work station
D:5S system implemented
E: Machine maintenance procedure
C, Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2,Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and KINGTONE
3,We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
