FTP CAT5E Network Cable Solid Bare Copper with PET Foil Standard Lan Cables

China FTP CAT5E Network Cable Solid Bare Copper with PET Foil Standard Lan Cables supplier
FTP CAT5E Network Cable Solid Bare Copper with PET Foil Standard Lan Cables supplier FTP CAT5E Network Cable Solid Bare Copper with PET Foil Standard Lan Cables supplier

Large Image :  FTP CAT5E Network Cable Solid Bare Copper with PET Foil Standard Lan Cables

Product Details:

Place of Origin: China
Brand Name: KINGTONE OR OEM
Certification: CE,RoHS, VDE,UL,CUL,LPCB
Model Number: FTP CAT5E 4PR Bare Copper PVC
Contact Now
Detailed Product Description
Minimum Order Quantity: 30 KM Packaging Details: 1000FT, Pull Box, Wooden Spool, Pallet
Delivery Time: Normally 15 Days Payment Terms: T/T, L/C
Supply Ability: 50*20’GP / Month Conductor: Bare Copper
Insulation: HDPE Shield: PET / AL-Foil
Jacket: PVC Color: Blue, Grey, White, Black
Package: 1000FT, Pull Box, Wooden Spool, Pallet
High Light:

cat5e networking cable

,

cat5e network ethernet cable





FTP CAT5E Network Cable Solid Bare Copper with PET Foil Standard Lan Cables





Quick Detail:



  • FTP CAT5E
  • Network Cable
  • Lan Cable
  • 4 Pairs
  • 24 AWG Soild Copper Conductor
  • PVC Jacket
  • Defined in ANSI/TIA/EIA-568-A, with Clarification in TSB-95
  • 1000FT, Pull Box, Wooden Spool, Pallet
  • MOQ: 30.5KM





Description:



KINGTONE NETCONNECT Enhanced Category 5 (Cat5) FTP cables exceed TIA/EIA-568-B.2,

ITA/EIA 568-C and ISO/IEC 11801 Class D, IEC61156-5, EN50288 and EN50173

performance requirements, providing extra headroom for a more robust cabling system.



They comply with all of the performance requirements for current and proposed applications

 such as Gigabit Ethernet 1000Base-T IEEE802.3ab,100BASE Tx, token ring, 155 Mbps ATM,

100 Mbps, 1.2Gbps, TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and

analog and digital voice (VoIP) and VoIP Camera application.



The cable is available in white, gray, blue and yellow, and packaged as wooden reels,

reelin- box and pull box.





KINGTONE using best raw material and best worker to produce FTP CAT 5E to meet

high performance in practical application.





Because of good managing methods, KINGTONE’S price of FTP CAT 5E is not high

although our quality is really high.







KT0253 FTP CAT5E Network Cable 4Pairs 24AWG Solid Bare Copper PVC

Application&Industry Standard:
Telephony Voice Wiring,10 Base-T,100 Base-T4,UL Subject 444,EIA/TIA568 & ISO/IEC 11801
100 Mbps TP-PMD(ANSI X3T9.5),TIA/EIA-568-B.2 , ISO.IEC 11801 Class D
IEC61156-5, IEC60332-1, EN50288, EN50173-1

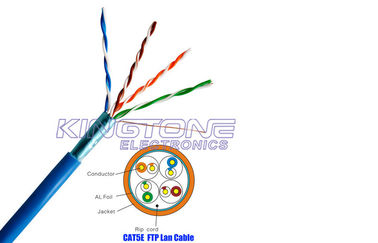

Construction
Center conductor 4x2x0.5mm Solid Bare Copper
Dielectric 0.91mm HDPE
Shield Al/PE Foil
Outer jacket 6.1±0.3mm PVC
Insulation colors Blue,White/Blue
Orange,White/Orange
Green,White/Green
Brown,White/Brown

Electrical Characteristics at 20 °C
Impedance  100 ± 15 Ω
DC resistance(max) 8.9 Ω/100m  @20℃
Mutual capacitance(max) 5.2 pF/100m @1kHz
Delay Skew 45
Voltage 300 Volts AC or DC

Mechanical Characteristics at 20 °C
Propagation Delay(max) 540 ns@10MHZ
Min.Bending radius 4×outside diameter of  Jacket
Operating Temperature -20 ℃ to 60℃

Performance Characteristics
Frequency  Attenuation (Max.) NEXT     (Min.) PS-NEXT ELFEXT PS-ELFEXT Return Loss
1 MHz 1,9 dB/100m 66 dB 63 dB 64 dB 61 dB 20 dB
10 MHz 6,3 dB/100m 51 dB 48 dB 47 dB 44 dB 23 dB
16 MHz 8,0 dB/100m 48 dB 45 dB 44 dB 41 dB 25 dB
20 MHz 9,9 dB/100m 46 dB 43 dB 42 dB 39 dB 25 dB
40 MHz 12,8 dB/100m 44 dB 41 dB 34 dB 31 dB 23 dB
60 MHz 16,0 dB/100m 42 dB 39 dB 28 dB 25 dB 22 dB
100 MHz 21,0 dB/100m 36 dB 33 dB 25 dB 22 dB 21 dB
* PVC – Polyvinylchlorid  * AWG - American Wire Gauge * AL/PE - Aluminium/Polyethylene

Order Informations:
  Marking KINGTONE KT0253 FTP CAT5E XXX M/FT

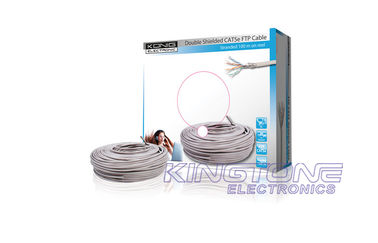

  Package 305M/1000FT   Pull box/Pallet (or Per customer's request)
  Delivery time Normally 15 days after received the deposit.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
