RG11 Quad CATV Coaxial Cable 14 AWG CCS 60% / 40% AL Braid CMR Rated PVC

China RG11 Quad CATV Coaxial Cable 14 AWG CCS 60% / 40% AL Braid CMR Rated PVC supplier

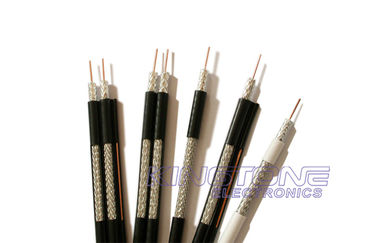

Large Image :  RG11 Quad CATV Coaxial Cable 14 AWG CCS 60% / 40% AL Braid CMR Rated PVC

Product Details:

Place of Origin: China
Brand Name: KINGTONE OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: CATV RG11 Quad CMR PVC
Contact Now
Detailed Product Description
Minimum Order Quantity: 30 KM Packaging Details: 100M, 305M, Wooden Spool, Carton
Delivery Time: Normally 15 Days Payment Terms: T/T, L/C
Supply Ability: 50*20’GP / Month Conductor: CCS
Dielectric: Foamed PE Shield 1: AL-Foil
Shield 2: Aluminum Braiding Jacket: PVC
Color: Black Or White Package: 100M, 305M, Wooden Spool, Carton
High Light:

digital coaxial cable

,

outdoor coaxial cable







RG11 Quad CATV Coaxial Cable 14 AWG CCS 60% / 40% AL Braid CMR Rated PVC





Quick Detail:



  • RG11 Quad CATV Coaxial Cable
  • 14AWG CCS Conductor
  • 60% AL Braiding
  • 40% AL Braiding
  • Foamed PE Insulation
  • CMR Rated PVC
  • 75 Ohms
  • Tested to 3GHz
  • ISO,CE,RoHS,UL
  • 100M, 305M, Wooden Spool, Carton





Description:



KT2099 RG11 Quad CATV Coaxial Cable with 2 Foils 60% / 40% Braid PVC CMR

 is a specific type of CATV coaxial cable , RG11Produced by KINGTONE) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG11 has a characteristic

impedance of 75 ohms. KINGTONE using best raw material and best worker to produce

RG11 to meet high performance in practical application. RG11 is packed in 500FT/1000FT

plastic/wooden spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, KINGTONE’S price of RG11 is not high although

our quality is really high.





Applications:



Suitable for RF signal transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital video

■ Antennas





KT2099 RG11 Quad CATV Coaxial Cable 18AWG CCS 60%/40% Braid PVC CMR or CMG 1000ft

Construction Parameters:
  Inner Conductor 0.064"/1.63mm/14AWG  Copper Clad Steel
  Dielectric 0.280"/7.11mm            Foamed PE
  Shield 1 0.287"/7.29mm  Bonded Aluminum Polyproylene
  Shield 2 60% coverage   Aluminum braid wire
  Shield 3 (Non-bonded) Aluminum Laminated Tape
  Shield 4 40% coverage  Aluminum braid wire
  Jacket 0.407"±0.006"/10.34±0.15mm  PVC CMR or CMG (UL)
  Jacket Thickness 0.037"/0.94mm
  Application For Use in Longer CATV Run Lengths

Electrical Characteristics:
  Inner Conductor Resistance The Max. at 20℃ shall be <  87 Ω/km  <  26.53 Ω/1000ft
  Capacitance 52 ±3 pF/m    15.85 ±1 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz: > 22dB
  Velocity of Propagation  0.85
  Sparker Test (VAC) 4

Attenuation(20℃):
Frequency (MHZ)             Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.38  1.25
55 0.96  3.15
83 1.18  3.87
187 1.75  5.74
211 1.90  6.23
250 2.05  6.72
300 2.25  7.38
350 2.42  7.94
400 2.60  8.53
450 2.75  9.02
500 2.90  9.51
550 3.04  9.97
600 3.18  10.43
750 3.65  11.97
865 3.98  13.05
1000 4.35  14.27

Mechanical and Environmental Properties
  Cable bend radius 10 times the cable diameter
  Operating Temp Range  (PVC) -20 ℃ to 60 ℃
  Cable diamensions 0.41''±0.006''/10.39±0.15 mm  PVC CMR or CMG (UL)

Order Informations:
  Marking

KINGTONE KT2096 RG11 60% Bonded 40% Non.Bonded PVC CMR or CMG (UL)

CATV COAXIAL CABLE ××× M/FT

  Package 500FT/Pull Box, 1000FT/Wooden Spool, Pallet
  Delivery time Normally 25 days after received the deposit.
