550 MHz UTP CAT6 UL CM Network Cable Solid Copper for Gigabit Ethernet

China 550 MHz UTP CAT6 UL CM Network Cable Solid Copper for Gigabit Ethernet supplier
550 MHz UTP CAT6 UL CM Network Cable Solid Copper for Gigabit Ethernet supplier 550 MHz UTP CAT6 UL CM Network Cable Solid Copper for Gigabit Ethernet supplier

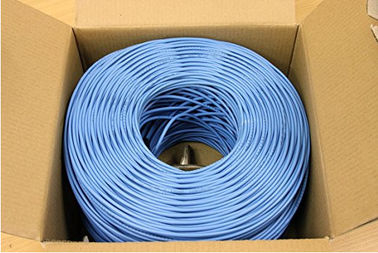

Large Image :  550 MHz UTP CAT6 UL CM Network Cable Solid Copper for Gigabit Ethernet

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: CE, RoHS, VDE, UL
Model Number: UTP CAT6 CU PVC CM

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 305M / 1000FT, Pull Box, Wooden Reel, Pallet
Delivery Time: Normally 20 days
Payment Terms: T/T, L/C
Supply Ability: 3000 KM / Month
Contact Now
Detailed Product Description
Conductor: Bare Copper Insulation: HDPE
Jacket: CM Rated PVC Color: Blue, Gray, White
Package: 305M / 1000FT, Pull Box, Wooden Reel, Pallet





550 MHz UTP CAT6 UL CM Network Cable Solid Copper for Gigabit Ethernet





Quick Detail:



  • Network Cable
  • Lan Cable
  • UTP CAT6, UL CM
  • 4 Pairs, 23 AWG
  • Soild Copper Conductor
  • CM Rated PVC Jacket
  • Defined in ANSI/TIA/EIA-568-A, with clarification in TSB-95
  • 305M / 1000FT, Pull Box, Wooden Reel, Pallet
  • MOQ: 30.5 KM



Description:



ZION NETCONNECT Enhanced Category 6 (Cat6) UTP cables exceed TIA/EIA-568-B.2,

ITA/EIA 568-C and ISO/IEC 11801 Class D, IEC61156-5, EN50288 and EN50173

performance requirements, providing extra headroom for a more robust cabling system.



They comply with all of the performance requirements for current and proposed applications

 such as Gigabit Ethernet 1000Base-T IEEE802.3ab,100BASE Tx, token ring, 155 Mbps ATM,

100 Mbps, 1.2Gbps, TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and

analog and digital voice (VoIP) and VoIP Camera application.



The cable is available in white, gray, blue and yellow, and packaged as wooden reels,

reelin- box and pull box.



ZION using best raw material and best worker to produce UTP CAT 6 to meet

high performance in practical application.



Because of good managing methods, ZION’S price of UTP CAT 6 is not high

although our quality is really high.







550 MHz UTP CAT6 UL CM Network Cable Solid Copper for Gigabit Ethernet
Application& Industry Standard:
Telephony Voice Wiring,10 Base-T,100 Base-T4, UL Subject 444,EIA/TIA568 & ISO/IEC 11801
100 Mbps TP-PMD(ANSI X3T9.5),TIA/EIA-568-B.2 , ISO.IEC 11801 Class D
IEC61156-5, IEC60332-1, EN50288, EN50173-1

Construction
Center conductor 23 AWG / 0.57 mm Solid Bare Copper
Dielectric 1.02mm HDPE
Seperator Cross Skeleton
Ripcord Cotton Wire
Outer jacket 6.10 ± 0.10 mm PVC (CM, CMX)
Insulation colors Blue,White/Blue
Orange,White/Orange
Green,White/Green
Brown,White/Brown

Electrical Characteristics at 20 °C
Impedance  100 ± 15 Ω
DC resistance(max) 8.9 Ω/100m  @20℃
Mutual capacitance(max) 5.6 pF/100m @1kHz
Delay Skew 45
Voltage 300 Volts AC or DC

Mechanical Characteristics at 20 °C
Propagation Delay(max) 540 ns@10MHZ
Min.Bending radius 4×outside diameter of  Jacket
Operating Temperature -20 ℃ to 60℃

Performance Characteristics
Frequency  Attenuation (Max.) NEXT     (Min.) PS-NEXT ELFEXT PS-ELFEXT Return Loss
1MHz 1.9 dB/100m 72 dB 69 dB 68 dB 65 dB 20 dB
10MHz 5,9 dB/100m 65 dB 62 dB 53 dB 50 dB 23 dB
16MHz 7,5 dB/100m 61 dB 58 dB 48 dB 45 dB 26 dB
25MHz 9,3 dB/100m 55 dB 52 dB 45 dB 42 dB 25 dB
40MHz 12,1 dB/100m 53 dB 50 dB 42 dB 39 dB 23 dB
60MHz 14,8 dB/100m 52 dB 49 dB 35 dB 32 dB 22 dB
100MHz 19,3 dB/100m 50 dB 47 dB 31 dB 28 dB 22 dB
150MHz 23,6 dB/100m 43 dB 40 dB 28 dB 25 dB 19 dB
200MHz 27,5 dB/100m 40 dB 37 dB 24 dB 21 dB 18 dB
250MHz 30,6 dB/100m 38 dB 35 dB 21 dB 18 dB 18 dB
* PVC – Polyvinylchlorid  * AWG - American Wire Gauge * AL/PE - Aluminium/Polyethylene

Order Informations:
  Marking ZION KT0272 UTP CAT6 CM XXX M/FT
  Package 305M / 1000FT, Pull Box, Wooden Reel, Pallet
  Delivery time Normally 20 days after received the deposit.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and ZION.

3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery





550 MHz UTP CAT6 UL CM Network Cable Solid Copper for Gigabit Ethernet
