FTP CAT6 Network Cable Solid Copper with PVC Jacket for High Speed Transmission

China FTP CAT6 Network Cable Solid Copper with PVC Jacket for High Speed Transmission supplier
FTP CAT6 Network Cable Solid Copper with PVC Jacket for High Speed Transmission supplier FTP CAT6 Network Cable Solid Copper with PVC Jacket for High Speed Transmission supplier

Large Image :  FTP CAT6 Network Cable Solid Copper with PVC Jacket for High Speed Transmission

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: CE, RoHS, VDE, UL
Model Number: FTP CAT6A CU PVC

Payment & Shipping Terms:

Minimum Order Quantity: 30.5 KM

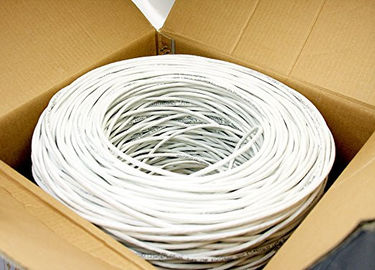

Packaging Details: 305M / 1000FT, Pull Box, Wooden Reel, Pallet
Delivery Time: Normally 20 days
Payment Terms: T/T, L/C
Supply Ability: 3000 KM / Month
Contact Now
Detailed Product Description
Conductor: Bare Copper Insulation: HDPE
Seperator: Cross Skeleton Shield: PET / AL-Foil / TC
Jacket: High Quality PVC Color: Gray, White, Blue
Package: 305M / 1000FT, Pull Box, Wooden Reel, Pallet
High Light:

cat5e networking cable

,

cat5e network ethernet cable





FTP CAT6 Network Cable Solid Copper with PVC Jacket for High Speed Transmission





Quick Detail:

  • Network cable
  • Lan Cable
  • FTP CAT6
  • 4 Pairs, 23 AWG
  • Soild Copper Conductor
  • High Quality PVC Jacket
  • Defined in ANSI/TIA/EIA-568-A, with clarification in TSB-95
  • 305M / 1000FT, Pull Box, Wooden Reel, Pallet
  • MOQ: 30.5 KM





Description:



ZION NETCONNECT Enhanced Category 6A (Cat6A) FTP cables exceed TIA/EIA-568-B.2,

ITA/EIA 568-C and ISO/IEC 11801 Class D, IEC61156-5, EN50288 and EN50173

performance requirements, providing extra headroom for a more robust cabling system.



They comply with all of the performance requirements for current and proposed applications

 such as Gigabit Ethernet 1000Base-T IEEE802.3ab,100BASE Tx, token ring, 155 Mbps ATM,

100 Mbps, 1.2Gbps, TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and

analog and digital voice (VoIP) and VoIP Camera application.



The cable is available in white, gray, blue and yellow, and packaged as wooden reels,

reelin- box and pull box.



ZION using best raw material and best worker to produce FTP CAT 6 to meet

high performance in practical application.



Because of good managing methods, ZION’S price of FTP CAT 6 is not high

although our quality is really high.





FTP CAT6 Network Cable Solid Copper with PVC Jacket for High Speed Transmission

Application & Industry Standard:
10 Base-T(IEEE 802.3),4/16 Mbps Token Ring (IEEE 802.5),100BASE-VG-AnyLAN
100 Mbps TP-PMD(ANSI X3T9.5),TIA/EIA-568-B.2 , ISO.IEC 11801 Class D
IEC61156-5, IEC60332-1, EN50288, EN50173-1

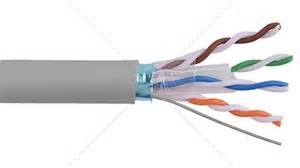

Construction
Center conductor 23 AWG / 0.57 mm Solid Bare Copper
Number of Conductor 8 (4 Pairs)
Insulation  1.10 ± 0.05 mm HDPE
Drain Wire 0.50 mm Tinned Copper
Shield PET / AL-Foil
Ripcord Cotton Wire
Outer jacket 7.00 ± 0.10 mm PVC
Insulation colors Blue,White/Blue
Orange,White/Orange
Green,White/Green
Brown,White/Brown

Electrical Characteristics at 20 °C
Impedance  100 ± 15 Ω
DC resistance(max) 8.9 Ω/100m  @20℃
Mutual capacitance(max) 5.5 pF/100m @1kHz
Delay Skew 45
Voltage 300 Volts AC or DC

Mechanical Characteristics at 20 °C
Propagation Delay(max) 540 ns@10MHZ
Min.Bending radius 4×outside diameter of  Jacket
Operating Temperature -20 ℃ to 60℃

Performance Characteristics
Frequency  Attenuation (Max.)

Near End

 (dB)

ACRF (dB/100m) PS-NEXT PS-ACRF Return Loss
1 MHz 2.1 dB/100m 74.3 67.8 72.3 64.8 20 dB
10 MHz 5.9 dB/100m 59.3 47.8 57.3 44.8 25 dB
16 MHz 7.5 dB/100m 43.7 56.2 54.2 40.7 25 dB
20 MHz 8.4 dB/100m 54.8 54.8 52.8 38.8 25 dB
25 MHz 9.4 dB/100m 53.3 39.8 51.3 36.8 24.3 dB
62.5 MHz 15.0 dB/100m 47.4 31.9 45.4 28.9 21.5 dB
100 MHz 19.1 dB/100m 44.3 27.8 42.3 18.8 20.1 dB
200 MHz 27.6 dB/100m 27.6 21.8 37.8 18.8 18.0 dB
300MHz 34.3 dB/100m 34.3 18.3 35.1 15.3 16.8 dB
500MHz 45.3 dB/100m 45.3 13.8 31.8 10.8 15.2 dB
* PVC – Polyvinylchlorid  * AWG - American Wire Gauge * AL/PE - Aluminium/Polyethylene

Order Informations:
  Marking ZION KT0250 FTP CAT6 XXX M/FT
  Package 305M / 1000FT, Pull Box, Wooden Reel, Pallet
  Delivery time Normally 20 days after received the deposit.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and ZION.

3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery



FTP CAT6 Network Cable Solid Copper with PVC Jacket for High Speed Transmission
