14 AWG RG11 Quad Shielded CATV Coaxial Cable UL CMR Rated PVC Jacket for CATV

China 14 AWG RG11 Quad Shielded CATV Coaxial Cable UL CMR Rated PVC Jacket for CATV supplier
14 AWG RG11 Quad Shielded CATV Coaxial Cable UL CMR Rated PVC Jacket for CATV supplier 14 AWG RG11 Quad Shielded CATV Coaxial Cable UL CMR Rated PVC Jacket for CATV supplier 14 AWG RG11 Quad Shielded CATV Coaxial Cable UL CMR Rated PVC Jacket for CATV supplier

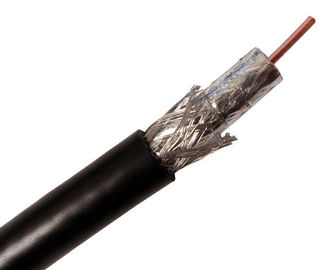

Large Image :  14 AWG RG11 Quad Shielded CATV Coaxial Cable UL CMR Rated PVC Jacket for CATV

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: CATV RG11 Quad CMR PVC

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 500FT, 1000FT, Wooden Spool, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 3000KM / Month
Contact Now
Detailed Product Description
Conductor: Copper Clad Steel Dielectric: Foamed PE
Shield 1: Bonded AL-Foil Shield 2: Aluminum Braiding
Shield 3: Non-Bonded AL-Foil Shield 4: Aluminum Braiding
Jacket: CMR Rated PVC Color: Black
Package: 500FT, 1000FT, Wooden Spool, Carton







14 AWG RG11 Quad Shielded CATV Coaxial Cable UL CMR Rated PVC Jacket for CATV





Quick Detail:



  • CATV Coaxial Cable
  • RG11 Quad Shielded
  • 14 AWG CCS Conductor
  • Foamed PE Insulation
  • 60% AL Braiding
  • 40% AL Braiding
  • CMR Rated PVC
  • 75 Ohms Impedence
  • Tested to 3.0 GHz
  • ISO, CE, RoHS, UL
  • 500FT, 1000FT, Wooden Spool, Carton





Description:



KT2099 RG11 Quad CATV Coaxial Cable 14 AWG CCS 60% and 40% AL Braid PVC CMR

 is a specific type of CATV Coaxial Cable , RG11 (Produced by ZION) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG11 has a characteristic

impedance of 75 ohms. ZION using best raw material and best worker to produce

RG11 to meet high performance in practical application. RG11 is packed in 500FT, 1000FT

Wooden Spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, ZION’S price of RG11 is not high although our quality is really high.





Applications:



Suitable for RF signal transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital video

■ Antennas





KT2099 RG11 Quad CATV Coaxial Cable 14 AWG CCS 60% and 40% AL Braid PVC CMR or CMG

Construction Parameters:
  Inner Conductor 0.064"/1.63mm/14AWG  Copper Clad Steel
  Dielectric 0.280"/7.11mm            Foamed PE
  Shield 1 0.287"/7.29mm  Bonded Aluminum Polyproylene
  Shield 2 60% coverage   Aluminum braid wire
  Shield 3 (Non-bonded) Aluminum Laminated Tape
  Shield 4 40% coverage  Aluminum braid wire
  Jacket 0.407"±0.006"/10.34±0.15mm  PVC CMR or CMG (UL)
  Jacket Thickness 0.037"/0.94mm
  Application For Use in Longer CATV Run Lengths

Electrical Characteristics:
  Inner Conductor Resistance The Max. at 20℃ shall be <  87 Ω/km  <  26.53 Ω/1000ft
  Capacitance 52 ±3 pF/m    15.85 ±1 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz: > 22dB
  Velocity of Propagation  0.85
  Sparker Test (VAC) 4

Attenuation(20℃):
Frequency (MHZ)             Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.38  1.25
55 0.96  3.15
83 1.18  3.87
187 1.75  5.74
211 1.90  6.23
250 2.05  6.72
300 2.25  7.38
350 2.42  7.94
400 2.60  8.53
450 2.75  9.02
500 2.90  9.51
550 3.04  9.97
600 3.18  10.43
750 3.65  11.97
865 3.98  13.05
1000 4.35  14.27

Mechanical and Environmental Properties
  Cable bend radius 10 times the cable diameter
  Operating Temp Range  (PVC) -20 ℃ to 60 ℃
  Cable diamensions 0.41''±0.006''/10.39±0.15 mm  PVC CMR or CMG (UL)

Order Informations:
  Marking

ZION KT2096 RG11 60% Bonded 40% N.Bonded PVC CMR or CMG UL

CATV COAXIAL CABLE ××× M/FT

  Package 500FT, 1000FT, Wooden Spool, Carton, Pallet
  Delivery time Normally 25 days after received the deposit.







Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and ZION.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery
