Dual RG6 Quad CATV Coaxial Cable 18 AWG CCS 60% AL Braid CM Rated PVC Jacket

China Dual RG6 Quad CATV Coaxial Cable 18 AWG CCS 60% AL Braid CM Rated PVC Jacket supplier
Dual RG6 Quad CATV Coaxial Cable 18 AWG CCS 60% AL Braid CM Rated PVC Jacket supplier Dual RG6 Quad CATV Coaxial Cable 18 AWG CCS 60% AL Braid CM Rated PVC Jacket supplier

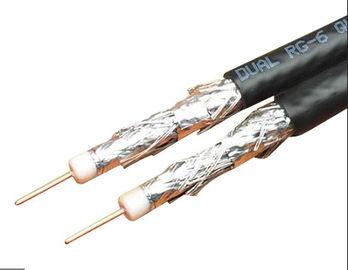

Large Image :  Dual RG6 Quad CATV Coaxial Cable 18 AWG CCS 60% AL Braid CM Rated PVC Jacket

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Dual RG6 Quad CCS PVC CM

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 500FT, 1000FT, Wooden Spool, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detailed Product Description
Conductor: Copper Clad Steel Dielectric: Foamed PE
Shield 1: Bonded AL-Foil Shield 2: Aluminum Braiding
Jacket: CM Rated PVC Color: Black Or White
Package: 500FT, 1000FT, Wooden Spool, Carton
High Light:

digital coaxial cable

,

hd coaxial cable





Dual RG6 Quad CATV Coaxial Cable 18 AWG CCS 60% AL Braid CM Rated PVC Jacket



Quick Detail:



  • CATV Coaxial Cable
  • Dual RG6 Coaxial Cable
  • 18 AWG CCS Conductor
  • Foamed PE Insulation
  • Bonded AL-Foil
  • First Shield 60% AL Braiding
  • Non-Bonded AL-Foil
  • Second Shield 40% AL Braiding
  • 75 Ohms Coaxial Cable
  • Tested to 3GHz
  • ISO,CE,RoHS,UL
  • 500FT, 1000FT, Wooden Spool, Carton





Description:



KT0690 Dual RG6 CATV COAXIAL CABLE 18 AWG CCS 60% and 40% AL Braid CM Rated PVC

is a specific type of CATV coaxial cable , RG6 (Produced by ZION) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG 6 has a characteristic

impedance of 75 ohms. ZION using best raw material and best worker to produce

RG 6 to meet high performance in practical application. RG6 is packed in 500FT, 1000FT

Wooden Spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, ZION’S price of RG 6 is not high although our quality is really high.





Applications:



Suitable for RF Signal Transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital video

■ Antennas





KT0690 Dual RG6 CATV COAXIAL CABLE 18AWG CCS 60% and 40% AL Braid CM Rated PVC
Construction Parameters:
  Inner Conductor 0.040"/1.02mm/18AWG Copper Clad Steel
  Dielectric 0.180"/4.57mm Foamed PE            Gas Expanded Polyethylene
  Shield 1 0.187"/4.75mm  Bonded Aluminum Polyproylene
  Shield 2 60% coverage   Aluminum Braid wire
  Shield 3 Laminated Aluminum Tape Non-Bonded
  Shield 4 40% coverage   Aluminum Braid wire
  Jacket 0.297"±0.006"/7.54±0.15mm  CM Rated PVC
  Jacket Thickness 0.033"/0.84mm
  Application For Use in Longer CATV  Run Lengths

Electrical Characteristics:
  Inner Conductor Resistance The Max. at 20℃ shall be  <  87 Ω/km ; < 26.6Ω/1000ft
  Capacitance 52 ±3 pF/m             15.9 ±0.9 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz:  > 22dB
  Velocity of Propagation  0.85
  Sparker Test (VAC) 4

Attenuation(20℃):
Frequency
          (MHZ)
Max Attenuation
(dB/100ft)
Max Attenuation
(dB/100m)
5 0.58  1.90
55 1.60  5.25
83 1.95  6.40
187 2.85  9.35
211 3.05  10.00
250 3.30  10.82
300 3.55  11.64
350 3.85  12.63
400 4.15  13.61
450 4.40  14.43
500 4.66  15.29
550 4.90  16.08
600 5.10  16.73
750 5.65  18.54
865 6.10  20.01
1000 6.55  21.49

Mechanical and Envrionmental Properties:
  Cable bend radius 10 times the cable diameter
  Operating Temp Range  (PVC) -20 ℃ to 60℃
  Cable diamensions 0.2988" ±0.006''/7.59±0.15 mmPVC

Order Informations:
  Marking

ZION KT0690 Dual RG6 60% and 40% PVC CM

CATV COAXIAL CABLE ×××M/FT

  Package 500FT, 1000FT, Wooden Spool, Carton
  Delivery time Normally 25 days after received the deposit.
  More informations Please contact with us.
