UL CM RG6 Tri. Shielded CATV Coaxial Cable 18 AWG CCS 77% AL Braiding for CATV

China UL CM RG6 Tri. Shielded CATV Coaxial Cable 18 AWG CCS 77% AL Braiding for CATV supplier
UL CM RG6 Tri. Shielded CATV Coaxial Cable 18 AWG CCS 77% AL Braiding for CATV supplier UL CM RG6 Tri. Shielded CATV Coaxial Cable 18 AWG CCS 77% AL Braiding for CATV supplier

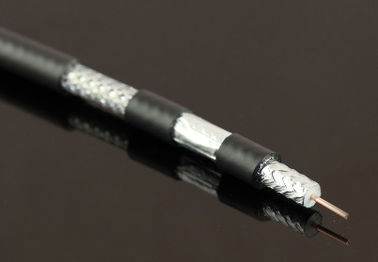

Large Image :  UL CM RG6 Tri. Shielded CATV Coaxial Cable 18 AWG CCS 77% AL Braiding for CATV

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: RG6 Tri. CCS 77% AL PVC CM

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 500FT, 1000FT, Wooden Spool, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 3000KM / Month
Contact Now
Detailed Product Description
Conductor: Copper Clad Steel Dielectric: Foamed PE
Shield 1: Bonded AL-Foil Shield 2: Aluminum Braiding
Shield 3: Non-Bonded AL-Foil Jacket: CM Rated PVC
Color: Black Or White Package: 500FT, 1000FT, Wooden Spool, Carton
High Light:

digital coaxial cable

,

outdoor coaxial cable





UL CM RG6 Tri. Shielded CATV Coaxial Cable 18 AWG CCS 77% AL Braiding for CATV





Quick Detail:



  • CATV Coaxial Cable
  • RG6 Tri. Shielded
  • 18 AWG CCS Conductor
  • Foamed PE Insulation
  • Bonded AL-Foil
  • 77% AL Braiding
  • 75 Ohms Impedence
  • Tested to 3.0 GHz
  • ISO, CE, RoHS, UL
  • 500FT, 1000FT, Wooden Spool, Carton



Description:



KT0647 RG6 Tri. CATV COAXIAL CABLE 18AWG CCS 77% Tri AL Braiding PVC-CM

 is a specific type of CATV coaxial cable , RG6 (Produced by ZION) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG6 has a characteristic

impedance of 75 Ohms. ZION using best raw material and best worker to produce

RG6 to meet high performance in practical application. RG6 is packed in 500FT, 1000FT

Wooden Spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, ZION’S price of RG 6 is not high although our quality is really high.





Applications:



Suitable for RF Signal Transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital Video

■ Antennas



KT0647 RG6 Tri. CATV Coaxial Cable 18AWG CCS B.AL-Foil 77% AL Braiding N.B.AL-Foil PVC-CM

Construction Parameters:
  Inner Conductor 0.040"/1.02mm/18AWG Copper Clad Steel
  Dielectric 0.180"/4.57mm Foamed PE         Gas Expanded Polyethylene
  Shield 1 0.187"/4.75mm  Bonded Aluminum Polyproylene
  Shield 2 77% coverage   Aluminum braid wire
  Shield 3 Laminated Aluminum Tape Non-Bonded
  Jacket 0.278"±0.006"/7.06±0.15mm  PVC CM
  Jacket Thickness 0.030"/0.76mm
  Application For Use in Longer CATV Run Lengths

Electrical Characteristics:
  Inner Conductor Resistance The Max. at 20℃ shall be    <  87 Ω/km ; < 26.6Ω/1000ft
  Capacitance 52 ±3 pF/m       15.9 ±0.9 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz:  > 22dB
  Velocity of Propagation  0.85
  Sparker Test (VAC) 4

Attenuation(20℃):
Frequency
            (MHZ)
Max Attenuation
(dB/100ft)
Max Attenuation
(dB/100m)
5 0.58  1.90
55 1.60  5.25
83 1.95  6.40
187 2.85  9.35
211 3.05  10.00
250 3.30  10.82
300 3.55  11.64
350 3.85  12.63
400 4.15  13.61
450 4.40  14.43
500 4.66  15.29
550 4.90  16.08
600 5.10  16.73
750 5.65  18.54
865 6.10  20.01
1000 6.55  21.49

Mechanical and Envrionmental Properties
  Cable bend radius 10 times the cable diameter
  Operating Temp Range  (PVC) -20 ℃ to 60℃
  Cable diamensions 0.2799"±0.006''/7.11±0.15 mm  PVC

Order Informations:
  Marking

ZION KT0647 RG6 Tri. 77% AL  PVC CM

CATV COAXIAL CABLE ××× M/FT

  Package 500FT, 1000FT, Wooden Spool, Carton, Pallet
  Delivery time Normally 25 days after received the deposit.
  More informations Please contact with us.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and ZION.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery
