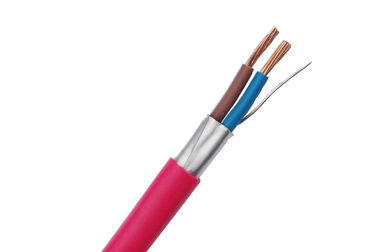

PH120 Fire Resistant Cable 2 Core Bare Copper Silicone Insulation LSZH Jacket

China PH120 Fire Resistant Cable 2 Core Bare Copper Silicone Insulation LSZH Jacket supplier
PH120 Fire Resistant Cable 2 Core Bare Copper Silicone Insulation LSZH Jacket supplier PH120 Fire Resistant Cable 2 Core Bare Copper Silicone Insulation LSZH Jacket supplier PH120 Fire Resistant Cable 2 Core Bare Copper Silicone Insulation LSZH Jacket supplier

Large Image :  PH120 Fire Resistant Cable 2 Core Bare Copper Silicone Insulation LSZH Jacket

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: CE, RoHS, VDE, UL, CUL, LPCB
Model Number: PH120 Fire Resistant Cable

Payment & Shipping Terms:

Minimum Order Quantity: 30 KM
Packaging Details: 500M, Wooden Spool, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 500KM / Month
Contact Now
Detailed Product Description
Conductor: Standed Bare Copper Insulation: Silicone Rubber
Shield: Glass Fibre / AL-Foil Jacket: FR-LSZH
Color: Red Package: 500M, Wooden Spool, Carton





PH120 Fire Resistant Cable 2 Core Bare Copper Silicone Insulation LSZH Jacket





Quick Detail:



  • SR 114E Enhanced Cable
  • PH120 Fire Resistant Cable
  • 2 Cores / 4 Cores
  • 1.00mm2 / 1.50mm2 / 2.50mm2 / 4.00mm2
  • Stranded Bare Copper Conductor
  • Silicone Rubber Insulation
  • FR-LSZH Jacket
  • 500M/Wooden Spool, 1Spool/Carton
  • 120 Minutes Under Fire of 840 Degrees without Short-Circuit.



Description:



KT1413 SR 114E Enhanced PH120 Fire Resistant Cable with Silicone Rubber LSZH Jacket

is a specific type of fire alarm cable Produced by ZION. These cables are used for

installation in fire systems for connecting fire alarms etc. The cable can be installed

in dry and moist areas as well for fixed open air installation. This cable type with

electrostatic screening (St) protects the transmission circuits against extern-electrical

interferences. And all these cables comply to:

IEC60331-23-2003

IEC60332-3-22-2005

IEC61034-2-2005

EC60754-1-99

IEC60754-2-99

IEC60331-21:1999

BS EN 61034-2:2005

BS 7629-1:2008

BS EN 50267-2-1:1999



ZION using best raw material and best worker to produce KT1413 PH120  Fire resistant cable SR 114E  Rubber Insulation FR-LSZH to meet high performance in practical application. KT1413 PH120  Fire resistant cable SR 114E  Rubber Insulation FR-LSZH  is packed in 200m Reel, 2~10 Reels /Carton, then will be layed on pallet to protect the spool and easier carry.Because of good managing methods,

ZION’S price of KT1413 PH120  Fire resistant cable SR 114E  Rubber Insulation FR-LSZH  is not high although our quality is really high.





Applications:



These cables are used for installation in fire systems for connecting fire alarms etc.

The cable can be installed in dry and moist areas as well for fixed open air installation.

This cable type with electrostatic screening (St) protects the transmission circuits

against extern-electrical interferences.



KT1413 PH120 Fire Resistant Cable SR 114E Enhanced Silicone Rubber Insulation FR-LSZH Jacket
APPLICATION:
These cables are used for installation in fire systems for connecting fire alarms etc.
The cable can be installed in dry and moist areasas well for fixed open air installation.
This cable type with electrostatic screening (St) protects
the transmission circuits against externelectrical interferences.
Standards:
All these cables comply to:
BS 5839-1:2002
Code of practice for fire system design, installation, commissioning and maintenance.
BS 7629-1:2008
Low emission of smoke and corrosive gases
BS EN 50200 PH120
Temperature: 830 °C Flame and shock for 120 minutes.

ELECTRICAL DATA (AT20OC)
Minimum
Bend Radius
Min.
Insulation
resistance
Max.Working
Temperature
Test voltage
(rms value)
Max.
Operating
voltage
peak value
  MΩ/km  ℃ V V
8×Diameter 300 -40℃~+90℃ 1000 300/500
TYPES AND MECHANICAL DATA

Types
sqmm

(mm2)

Conductor Insulation Shielded1/
Drain Wire /
Shielded2
Level of
twisting
Jacket
Matterial
OD of
Jacket (mm)
2×1.0 BC Class 1,5 Rubber Fiber Tape/AL-Foil  TC FR-LSZH 7.00±0.20
4×1.0 BC Class 1,5 Rubber Fiber Tape/AL-Foil TC FR-LSZH 8.00±0.20
2×1.5 BC Class 1,5 Rubber Fiber Tape/AL-Foil TC FR-LSZH 7.50±0.20
4×1.5 BC Class 1,5 Rubber Fiber Tape/AL-Foil TC FR-LSZH 8.60±0.20
2×2.5 BC Class 1,5 Rubber Fiber Tape/AL-Foil TC FR-LSZH 8.50±0.20
4×2.5 BC Class 1,5 Rubber Fiber Tape/AL-Foil TC FR-LSZH 10.0±0.20
2×4.0 BC Class 5 Rubber Fiber Tape/AL-Foil TC FR-LSZH 9.80±0.20
4×4.0 BC Class 5 Rubber Fiber Tape/AL-Foil TC FR-LSZH 11.70±0.20

  *Notes Class Types: Class1: Solid / Class 5: Flexible
  FR-LSZH: LSZH thermoplastic material Type LTS3 to BS 7656-6.1
  Silicone Rubber: High performance silicone rubber EI2 to BS EN 50363-1
TECHNICAL DATA

Types
sqmm

(mm2)

Max.Resistance
of Cond.at 20℃
Current Carrying
Capacity(Amperes)
Nominal
Capacitance
(pF/m)
  Class 1,2 Class 5 Clipped  In Conduit Core Screen
1.00  18.10 Ω/km 19.50 Ω/km 19 17 100 170
1.50  12.10 Ω/km 13.30 Ω/km 24 22 110 190
2.50    7.41 Ω/km   7.98 Ω/km 33 30 130 220
4.00    4.61 Ω/km   4.95 Ω/km 45 40 160 270

Order Informations:
  Marking

ZION KT1413 PH120 SR 114E Enhanced Cable N*NNmm2  XXX M

  Package 500M/Wooden Spool, 1 Spool/Carton
