FRLS Fire Resistant Cable Shielded 1.00mm2 Solid Bare Copper Conductor for Security

China FRLS Fire Resistant Cable Shielded 1.00mm2 Solid Bare Copper Conductor for Security supplier
FRLS Fire Resistant Cable Shielded 1.00mm2 Solid Bare Copper Conductor for Security supplier FRLS Fire Resistant Cable Shielded 1.00mm2 Solid Bare Copper Conductor for Security supplier

Large Image :  FRLS Fire Resistant Cable Shielded 1.00mm2 Solid Bare Copper Conductor for Security

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: CE, RoHS, VDE, UL, CUL, LPCB
Model Number: FRLS 1.00mm2 Shielded

Payment & Shipping Terms:

Minimum Order Quantity: 30KM
Packaging Details: 100M, 200M, Roll, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detailed Product Description
Conductor: Solid Bare Copper Insulation: Silicone Rubber
Shield: PET / AL-Foil / TC Jacket: FRLS PVC
Color: Red Package: 100M, 200M, Roll, Carton
High Light:

fiber optic ethernet cable

,

fiber optical cable

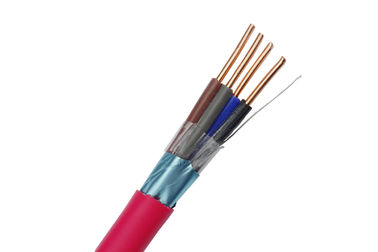

FRLS Fire Resistant Cable Shielded 1.00mm2 Solid Bare Copper Conductor for Security





Quick Detail:



  • FRLS Fire Resistant Cable
  • 1.00mm2 Solid Copper Conductor
  • Silicone Rubber Insulation
  • Shielded with PET / AL-Foil
  • Tinned Copper Drain Wire
  • Fire Resistance Low Smoke PVC
  • 200M / Roll / Carton / Pallet
  • 180 Minutes under Fire of 750 Degrees without Short-Circuit.



Description:



KT1440 FRLS Fire Resistant Cable 1.00mm2 Shielded Bare Copper Silicone Rubber

is a specific type of fire alarm cable Produced by ZION. These cables are used for

installation in fire systems for connecting fire alarms etc. The cable can be installed

in dry and moist areas as well for fixed open air installation. This cable type with

electrostatic screening (St) protects the transmission circuits against extern-electrical

interferences. And all these cables comply to:

IEC60331-23-2003

IEC60332-3-22-2005

IEC61034-2-2005

EC60754-1-99

IEC60754-2-99

IEC60331-21:1999

BS EN 61034-2:2005

BS 7629-1:2008

BS EN 50267-2-1:1999



ZION using best raw material and best worker to produce KT1440 FRLS Fire Resistant Cable

1.00mm2 Shielded Bare Copper Silicone Rubber to meet high performance in practical application.

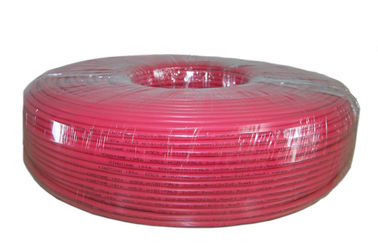

KT1440 FRLS Fire Resistant Cable 1.00mm2 Shielded Bare Copper Silicone Rubber is packed in 200M Roll, 2~4 Rolls /Carton, then will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, ZION’S price of KT1440 FRLS Fire Fire Resistant Cable

1.00mm2 Shielded Bare Copper Silicone Rubber is not high although our quality is really high.





Applications:



These cables are used for installation in fire systems for connecting fire alarms etc.

The cable can be installed in dry and moist areas as well for fixed open air installation.

This cable type with electrostatic screening (St) protects the transmission circuits

against extern-electrical interferences.



KT1440 FRLS Fire Resistant Cable 1.00mm2 Shielded Bare Copper Silicone Rubber
APPLICATION:

These cables are used for installation in fire systems for connecting fire alarms etc.

The cable can be installed in dry and moist areasas well for fixed open air installation.

This cable type with electrostatic screening (St) protects the transmission circuits

against externelectrical interferences.

Standards:
IEC60331-23-2003
IEC61034-2-2005
IEC60754-2-99
IEC60332-3-22-2005
IEC60754-1-99
IEC60331-21:1999
BS 7629-1:2008
BS EN 61034-2:2005
BS EN 50267-2-1:1999

Fire Testing:
180 minutes under fire of 750 degrees without short-circuit.

ELECTRICAL DATA (AT20OC)

Minimum

Bend

Radius

Min.Insulation

resistance

Max.Working
Temperature

Test voltage

(rms value)

Max.

Operating

 voltage

peak value

  MΩ/km  ℃ V V
8×Diameter 200 -15℃~+90℃ 1000 300/500

TYPES AND MECHANICAL DATA

Types

sqmm

(mm2)

Conductor Insulation

Shielded1/

Drain Wire /

Shielded2

Level of

twisting

Jacket

Matterial

OD of

Jacket

(mm)

1×2×1.00 1×2×1.07 BC Silicone PET/TC/AL-Foil   FRLS 6.50
2×2×1.00 2×2×1.07 BC Silicone PET/TC/AL-Foil   FRLS 7.50
  *Notes Class 1: Solid
Order Informations:
  Marking

ZION KT1440 FRLS Shielded n×2×1.00MM2 CABLE

  Package 100M or 200M/Roll, 300M/Wooden Spool,Pallet
