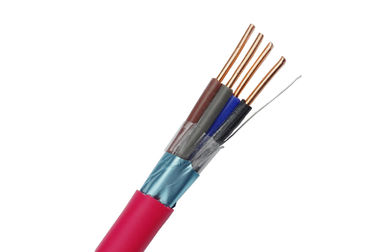

FRLS Shielded 0.50mm2 Fire Resistant Cable Bare Copper Conductor with FRLS Jacket

China FRLS Shielded 0.50mm2 Fire Resistant Cable Bare Copper Conductor with FRLS Jacket supplier
FRLS Shielded 0.50mm2 Fire Resistant Cable Bare Copper Conductor with FRLS Jacket supplier FRLS Shielded 0.50mm2 Fire Resistant Cable Bare Copper Conductor with FRLS Jacket supplier

Large Image :  FRLS Shielded 0.50mm2 Fire Resistant Cable Bare Copper Conductor with FRLS Jacket

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: CE, RoHS, VDE, UL, CUL, LPCB
Model Number: FRLS 0.50mm2 Shielded

Payment & Shipping Terms:

Minimum Order Quantity: 30KM
Packaging Details: 100M, 200M, Roll, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detailed Product Description
Conductor: Solid Bare Copper Insulation: Silicone Rubber
Shield: PET / AL-Foil Jacket: FRLS PVC
Color: Red Package: 100M, 200M, Roll, Carton
High Light:

fiber optic ethernet cable

,

fiber optical cable





FRLS Shielded 0.50mm2 Fire Resistant Cable Bare Copper Conductor with FRLS Jacket





Quick Detail:



  • FRLS Fire Resistant Cable
  • 0.50mm2 Bare Copper Conductor
  • Silicone Rubber Insulation
  • PET / AL-Foil Shield
  • Fire Resistance Low Smoke PVC
  • 200M / Roll / Carton / Pallet
  • 180 Minutes Under Fire of 750 Degrees without Short-Circuit.





Description:



KT1438 FRLS Fire Resistant Cable 0.50mm2 Shielded Bare Copper Silicone Rubber

is a specific type of fire alarm cable Produced by ZION. These cables are used for

installation in fire systems for connecting fire alarms etc. The cable can be installed

in dry and moist areas as well for fixed open air installation. This cable type with

electrostatic screening (St) protects the transmission circuits against extern-electrical

interferences. And all these cables comply to:

IEC60331-23-2003

IEC60332-3-22-2005

IEC61034-2-2005

EC60754-1-99

IEC60754-2-99

IEC60331-21:1999

BS EN 61034-2:2005

BS 7629-1:2008

BS EN 50267-2-1:1999



ZION using best raw material and best worker to produce KT1438 FRLS Fire resistant cable 0.50mm2 shielded Copper Silicone  to meet high performance in practical application. KT1438 FRLS Fire resistant cable 0.50mm2 shielded Copper Silicone  is packed in 200m Roll, 2 Rolls / Carton, then will be layed on pallet to protect the spool and easier carry. Because of good managing methods,

ZION’S price of KT1438 FRLS Fire Resistant Cable 0.50mm2 Shielded Bare Copper Silicone Rubber

is not high although our quality is really high.





Applications:



These cables are used for installation in fire systems for connecting fire alarms etc.

The cable can be installed in dry and moist areas as well for fixed open air installation.

This cable type with electrostatic screening (St) protects the transmission circuits

against extern-electrical interferences.



KT1438 FRLS Fire Resistant Cable 0.50mm2 Shielded Copper Silicone Insulation
APPLICATION:
These cables are used for installation in fire systems for connecting fire alarms etc.
The cable can be installed in dry and moist areasas well for fixed open air installation.
This cable type with electrostatic screening (St) protects
the transmission circuits against externelectrical interferences.
Standards:
IEC60331-23-2003
IEC61034-2-2005
IEC60754-2-99
IEC60332-3-22-2005
IEC60754-1-99
IEC60331-21:1999
BS 7629-1:2008
BS EN 61034-2:2005
BS EN 50267-2-1:1999

Fire Testing:
180 minutes under fire of 750 degrees without short-circuit.

ELECTRICAL DATA (AT20OC)
Minimum
Bend Radius
Min.
Insulation
resistance
Max.Working
Temperature
Test voltage
(rms value)
Max.
Operating
voltage
peak value
  MΩ/km  ℃ V V
8×Diameter 200 -15℃~+90℃ 1000 300/500

TYPES AND MECHANICAL DATA
Types
sqmm (mm2)
Conductor Insulation Shielded1/
Drain Wire /
Shielded2
Level of
twisting
Jacket
Matterial
OD of
Jacket (mm)
1×2×0.50 1×2×0.76 BC Silicone PET/TC/AL-Foil   FRLS 5.20
2×2×0.50 2×2×0.76 BC Silicone PET/TC/AL-Foil   FRLS 6.00
  *Notes Class 1: Solid Class 5: Flexible
Order Informations:
  Marking ZION KT1438 FRLS Shielded n×2×0.50MM2 CABLE

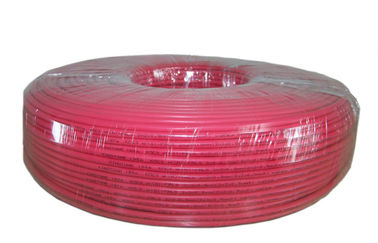

  Package 100M/Roll,200M/Roll, 300M/Wooden Spool,Pallet





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and KINGTONE.

3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery



FRLS Shielded 0.50mm2 Fire Resistant Cable Bare Copper Conductor with FRLS Jacket
