FRLS 0.22mm2 Copper Fire Resistant Cable Unshielded Silicone Insulation Cables

China FRLS 0.22mm2 Copper Fire Resistant Cable Unshielded Silicone Insulation Cables supplier
FRLS 0.22mm2 Copper Fire Resistant Cable Unshielded Silicone Insulation Cables supplier FRLS 0.22mm2 Copper Fire Resistant Cable Unshielded Silicone Insulation Cables supplier

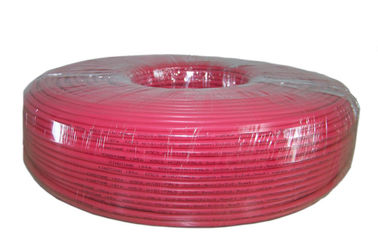

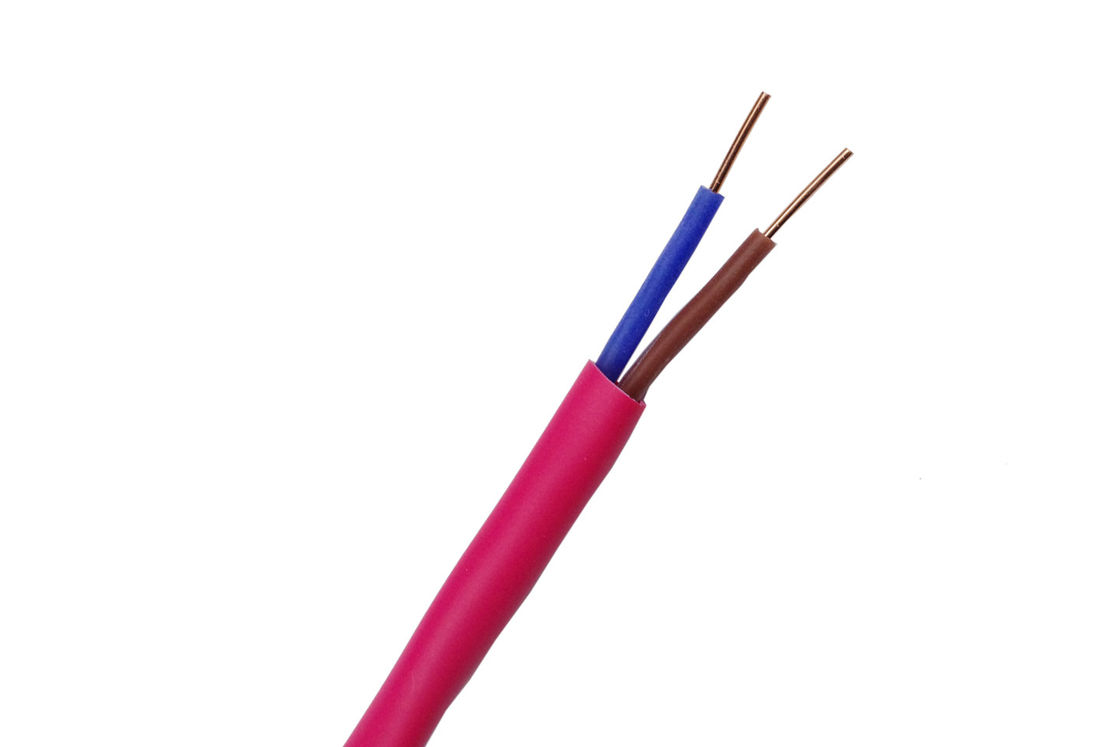

Large Image :  FRLS 0.22mm2 Copper Fire Resistant Cable Unshielded Silicone Insulation Cables

Product Details:

Place of Origin: CHINA
Brand Name: ZION OR OEM
Certification: CE, RoHS, VDE, UL, CUL, LPCB
Model Number: FRLS 0.22mm2 Unshielded

Payment & Shipping Terms:

Minimum Order Quantity: 30KM
Packaging Details: 100M, 200M, Roll, Carton
Delivery Time: Normally 25 days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Contact Now
Detailed Product Description
Conductor: Solid Bare Copper Insulation: Silicone Rubber
Jacket: FRLS PVC Color: Red
Package: 100M, 200M, Roll, Carton
High Light:

heat resistance cable

,

fiber optical cable





FRLS 0.22mm2 Copper Fire Resistant Cable Unshielded Silicone Insulation Cables





Quick Detail:



  • FRLS Fire Resistant Cable
  • 0.22mm2 Copper Conductor
  • Silicone Rubber Insulation
  • Fire Resistance Low Smoke PVC
  • 200M Roll, Carton, Pallet
  • 180 Minutes under Fire of 750 Degrees without Short-Circuit.





Description:



KT1431 FRLS Fire Resistant Cable 0.22mm2 Unshielded Bare Copper Silicone Insulation

is a specific type of fire alarm cable Produced by ZION. These cables are used for

installation in fire systems for connecting fire alarms etc. The cable can be installed

in dry and moist areas as well for fixed open air installation. This cable type with

electrostatic screening (St) protects the transmission circuits against extern-electrical

interferences. And all these cables comply to:

IEC60331-23-2003

IEC60332-3-22-2005

IEC61034-2-2005

EC60754-1-99

IEC60754-2-99

IEC60331-21:1999

BS EN 61034-2:2005

BS 7629-1:2008

BS EN 50267-2-1:1999



ZION using best raw material and best worker to produce KT1431 FRLS Fire resistant cable 0.22mm2 unshielded Copper Silicone  to meet high performance in practical application. KT1431 FRLS Fire resistant cable 0.22mm2 unshielded Copper Silicone  is packed in 200m Roll, 2 Rolls /Carton,

then will be layed on pallet to protect the spool and easier carry.Because of good managing methods,

ZION’S price of KT1431 FRLS Fire resistant cable 0.22mm2 unshielded Copper Silicone is not high although our quality is really high.





Applications:



These cables are used for installation in fire systems for connecting fire alarms etc.

The cable can be installed in dry and moist areas as well for fixed open air installation.

This cable type with electrostatic screening (St) protects the transmission circuits

against extern-electrical interferences.





KT1431 FRLS Fire Resistant Cable 0.22mm2 Unshielded Copper Silicone Insulation

APPLICATION:
These cables are used for installation in fire systems for connecting fire alarms etc.
The cable can be installed in dry and moist areasas well for fixed open air installation.
This cable type with electrostatic screening (St) protects the transmission circuits
against externelectrical interferences.
Standards:
All these cables comply to:
IEC60331-23-2003
IEC61034-2-2005
IEC60754-2-99
IEC60332-3-22-2005
IEC60754-1-99
IEC60331-21:1999
  BS 7629-1:2008
BS EN 61034-2:2005
BS EN 50267-2-1:1999
Fire Testing:
180 minutes under fire of 750 degrees without short-circuit.

ELECTRICAL DATA (AT20OC):
Minimum
Bend Radius
  Min.Insulation
resistance
Max.Working
Temperature
Test voltage
(rms value)
Max. Operating
voltage peak value
    MΩ/km  ℃ V V
8×Diameter   200 -15℃~+90℃ 1000 300

TYPES AND MECHANICAL DATA:
Types
sqmm (mm2)
Conductor
BC (mm)
Insulation Level of
twisting
Jacket Matterial OD of
Jacket (mm)
1×2×0.22 1×2×0.50  Silicone   FRLS 4.10
2×2×0.22 2×2×0.50  Silicone   FRLS 4.70
  *Notes Class 1: Solid BC: Bare Copper
Order Informations:
  Marking ZION KT1431 FRLS Cable n×2×***MM2 CABLE MMDDYYYY
  Package 100M/Roll,200M/Roll, 300M/Wooden Spool,Pallet
  More info. Please contact with us.
