FRHF 2 Cores Shielded Fire Resistant Cable Solid Bare Copper Silicone Insulation

China FRHF 2 Cores Shielded Fire Resistant Cable Solid Bare Copper Silicone Insulation supplier
FRHF 2 Cores Shielded Fire Resistant Cable Solid Bare Copper Silicone Insulation supplier FRHF 2 Cores Shielded Fire Resistant Cable Solid Bare Copper Silicone Insulation supplier

Large Image :  FRHF 2 Cores Shielded Fire Resistant Cable Solid Bare Copper Silicone Insulation

Product Details:

Place of Origin: China
Brand Name: ZION OR OEM
Certification: CE, RoHS, VDE, UL, CUL, LPCB
Model Number: FRHF 2 Cores Shielded

Payment & Shipping Terms:

Minimum Order Quantity: 30KM
Packaging Details: 100M, 200M, Reel, Carton
Delivery Time: Normally 15 days
Payment Terms: T/T, L/C
Supply Ability: 50*20’GP / Month
Contact Now
Detailed Product Description
Conductor: Solid Bare Copper Insulation: Silicone
Shield: PET / AL-Foil Jacket: FRHF PVC
Color: Orange Package: 100M, 200M, Reel, Carton
High Light:

heat resistance cable

,

fiber optic ethernet cable

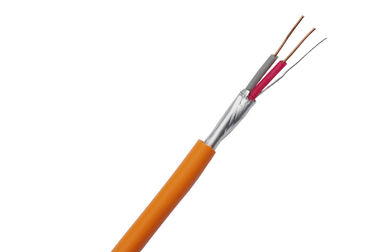

FRHF 2 Cores Shielded Fire Resistant Cable Solid Bare Copper Silicone Insulation





Quick Detail:



  • FRHF Fire Resistant Cable
  • 2 Cores Bare Copper Conductor
  • Silicone Rubber Insulation
  • Shielded with PET / AL-Foil
  • Tinned Copper Drain Wire
  • Fire Resistance Halogen Free PVC
  • 200M / Roll / Carton / Pallet
  • 180 Minutes under Fire of 750 Degrees without Short-Circuit.





Description:



KT1406 FRHF Fire Resistant Cable 2 Cores Solid Bare Copper Silicone Rubber Insulation

is a specific type of fire alarm cable Produced by ZION. These cables are used for

installation in fire systems for connecting fire alarms etc. The cable can be installed

in dry and moist areas as well for fixed open air installation. This cable type with

electrostatic screening (St) protects the transmission circuits against extern-electrical

interferences. And all these cables comply to:

IEC60331-23-2003

IEC60332-3-22-2005

IEC61034-2-2005

EC60754-1-99

IEC60754-2-99

IEC60331-21:1999

BS EN 61034-2:2005

BS 7629-1:2008

BS EN 50267-2-1:1999





ZION using best raw material and best worker to produce KT1406 КПСЭ нг(А)-FRHF Fire Resistant Cable 2 Cores to meet high performance in practical application.

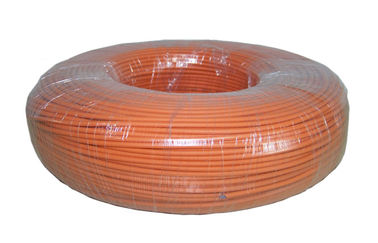

KT1406 КПСЭ нг(А)-FRHF Fire Resistant Cable 2 Cores  is packed in 200M Roll, 2~4 Rolls /Carton, then will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, ZION’S price of KT1406 КПСЭ нг(А)-FRHF Fire Resistant Cable 2 Cores is not high although our quality is really high.





Applications:



These cables are used for installation in fire systems for connecting fire alarms etc.

The cable can be installed in dry and moist areas as well for fixed open air installation.

This cable type with electrostatic screening (St) protects the transmission circuits

against extern-electrical interferences.



KT1406 КПСЭ нг(А)-FRHF Fire Resistant Cable 2 Cores Bare Copper Silicone Insulation
APPLICATION:
These cables are used for installation in fire systems for connecting fire alarms etc.
The cable can be installed in dry and moist areasas well for fixed open air installation.
This cable type with electrostatic screening (St) protects
the transmission circuits against externelectrical interferences.
Standards:
IEC60331-23-2003
IEC61034-2-2005
IEC60754-2-99
IEC60332-3-22-2005
IEC60754-1-99
IEC60331-21:1999
BS 7629-1:2008
BS EN 61034-2:2005
BS EN 50267-2-1:1999

Fire Testing:
180 minutes under fire of 750 degrees without short-circuit.

ELECTRICAL DATA (AT20OC)
Minimum
Bend Radius
Min.
Insulation
resistance
Max.Working
Temperature
Test voltage
(rms value)
Max.
Operating
voltage
peak value
  MΩ/km  ℃ V V
8×Diameter 200 -15℃~+90℃ 1000 300/500

TYPES AND MECHANICAL DATA
Types
sqmm (mm2)
Conductor Insulation Shielded1/
Drain Wire /
Shielded2
Level of
twisting
Jacket
Matterial

OD of
Jacket

(mm)

2×0.22 Bare copper  Silicone PET/TC/AL-Foil   FRHF 4.30
2×0.5 Bare copper  Silicone PET/TC/AL-Foil   FRHF 5.20
2×0.75 Bare copper  Silicone PET/TC/AL-Foil   FRHF 6.10
2×1.0 Bare copper  Silicone PET/TC/AL-Foil   FRHF 6.50
2×1.5 Bare copper  Silicone PET/TC/AL-Foil   FRHF 7.10
2×2.5 Bare copper  Silicone PET/TC/AL-Foil   FRHF 8.20
  *Notes Class 1: Solid
Order Informations:
  Marking ZION KT1406 КПСЭ нг(А)FRHF 2×***MM2 CABLE MMDDYYYY
  Package 100M or 200M/Roll, 300M/Wooden Spool,Pallet
